Accepting Immediate Offers: thyssenkrupp - Kawasaki Battery Module to Pack Production [Robotic Work Cell Line - Installed & Calibrated Never Ran]

Automated Robotic Battery Module to Pack Work Cell (based LG Energy Solution (LGES) battery architecture)

TK QUAD
View Terms
Company logo

Location

Contact

Want to preview these assets?

Connect with our staff now
to get scheduled!

Schedule An Inspection

Preview

Preview by Appointment Only

Auction Type

Private Treaty

Description

🏢 Complete EV Battery Pack Assembly Line: – IMMEDIATE OFFER INVITED

Offered by: BidItUp Auctions Worldwide – SINCE 1977

Designed to Assemble and Validate  build modules based off of LG Architecture (LG (E79 2P 12S) Energy Solution (LGES) battery architecture

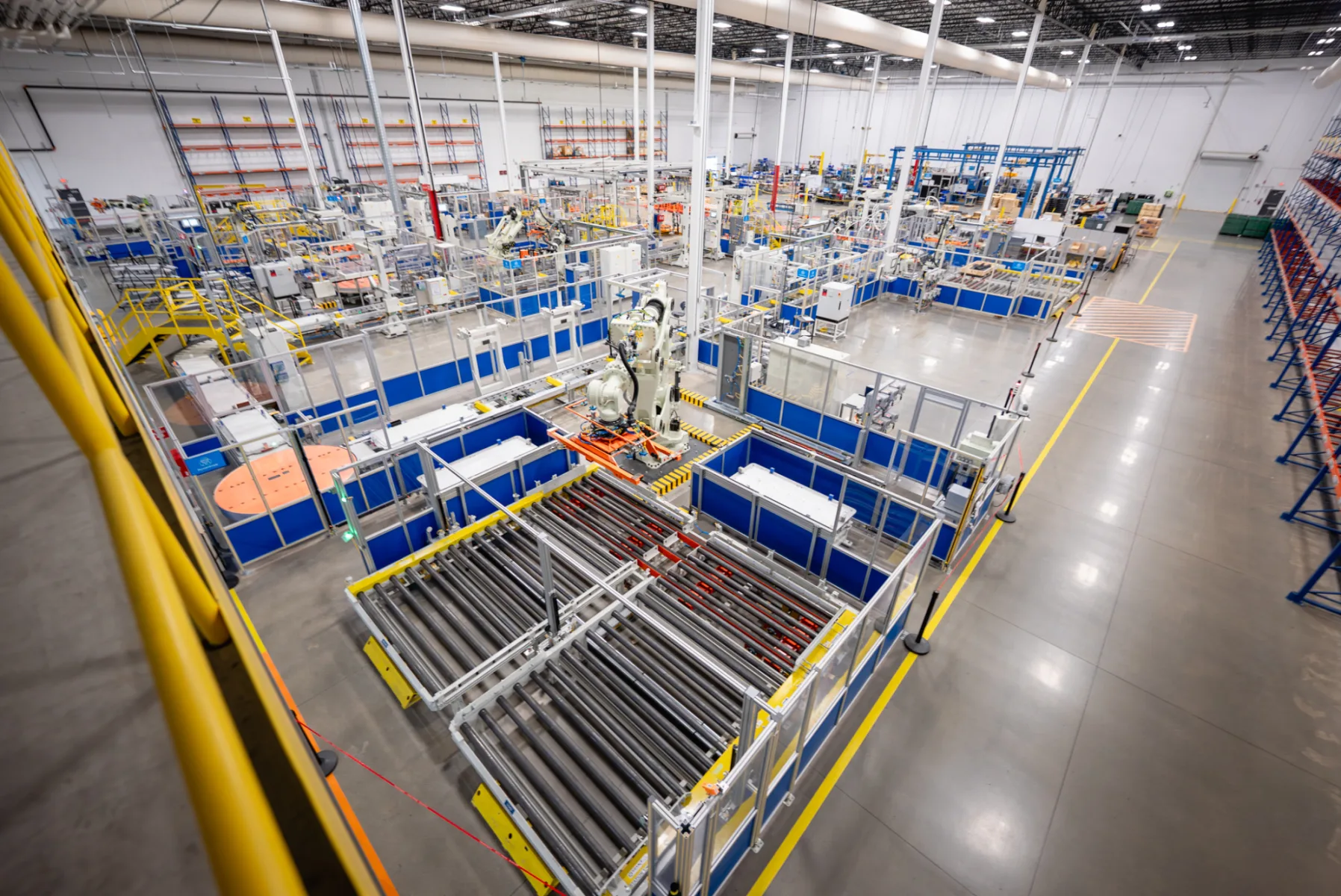

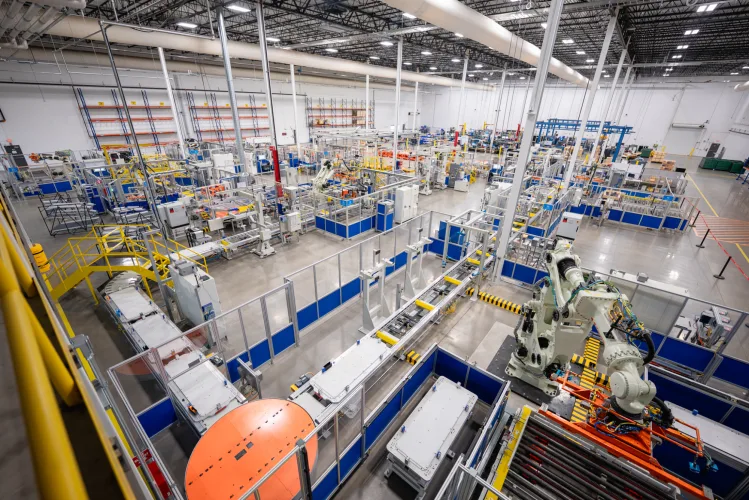

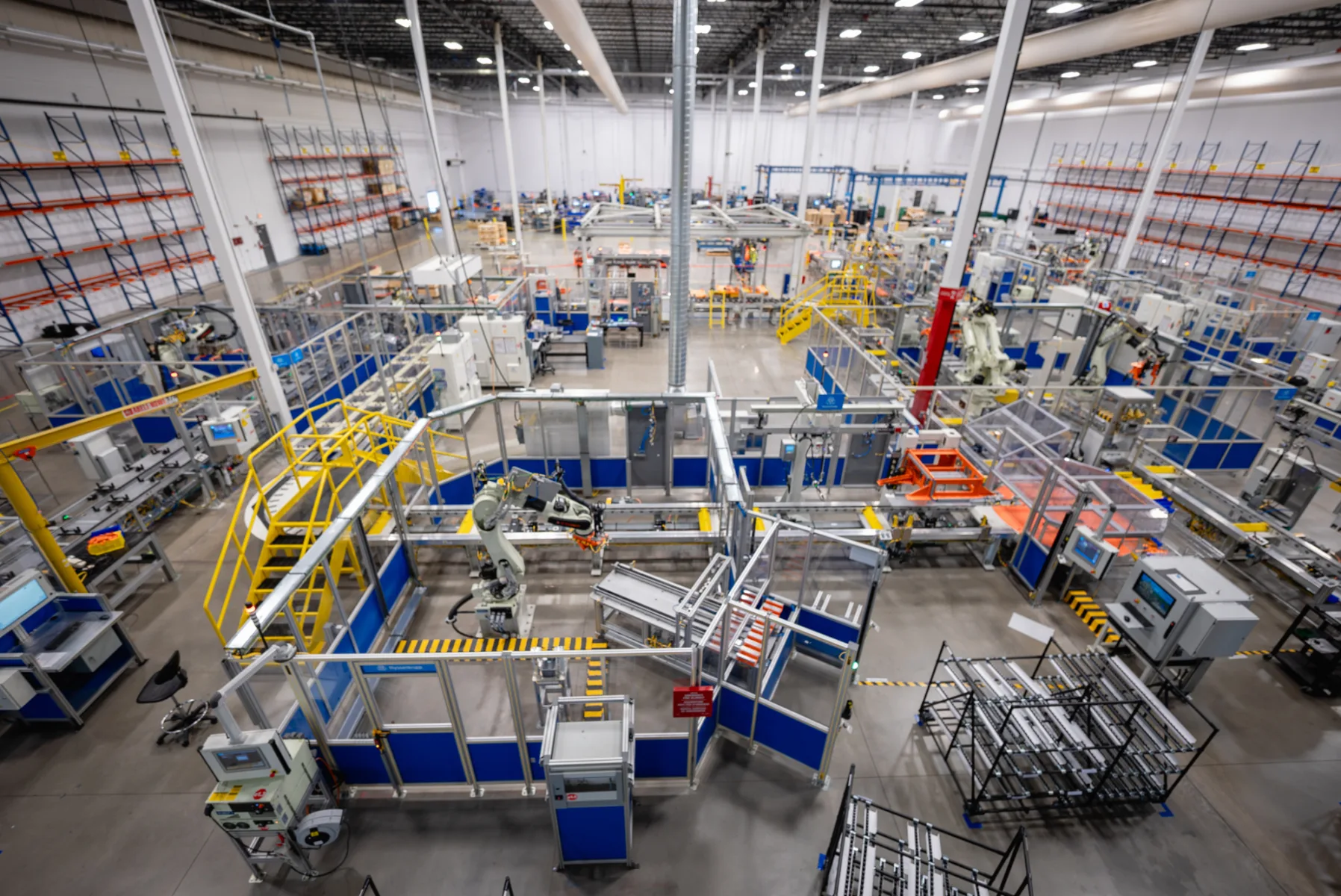

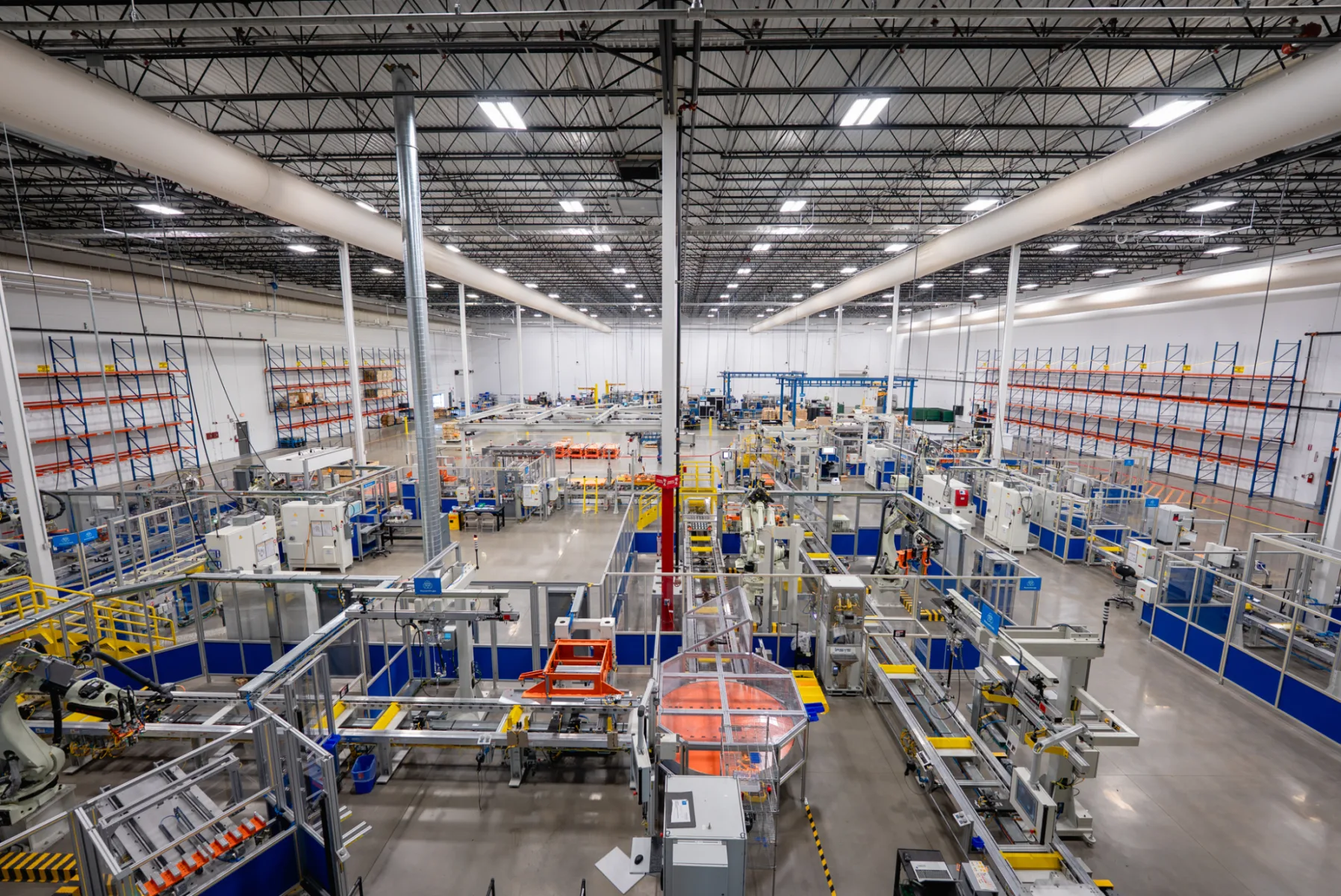

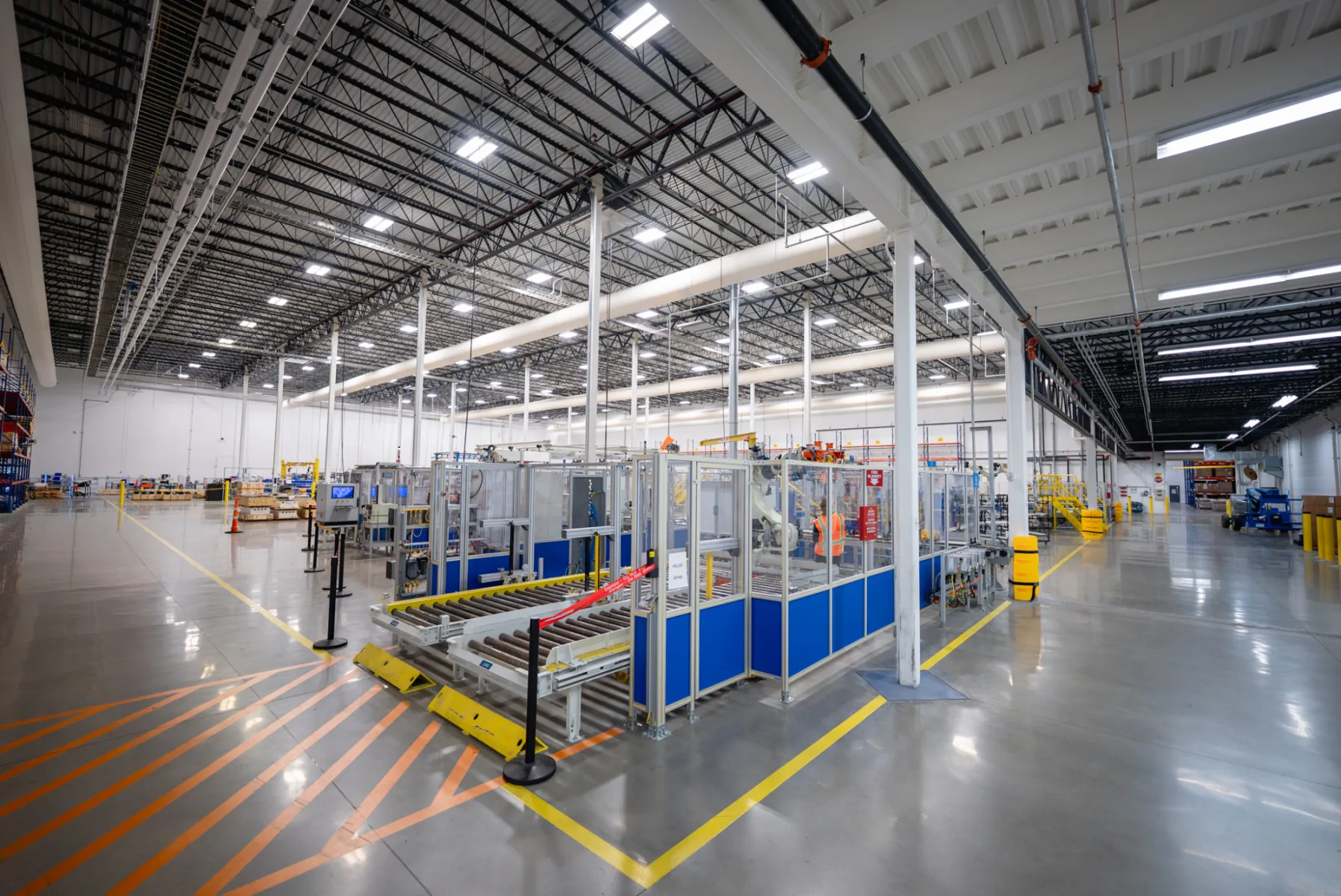

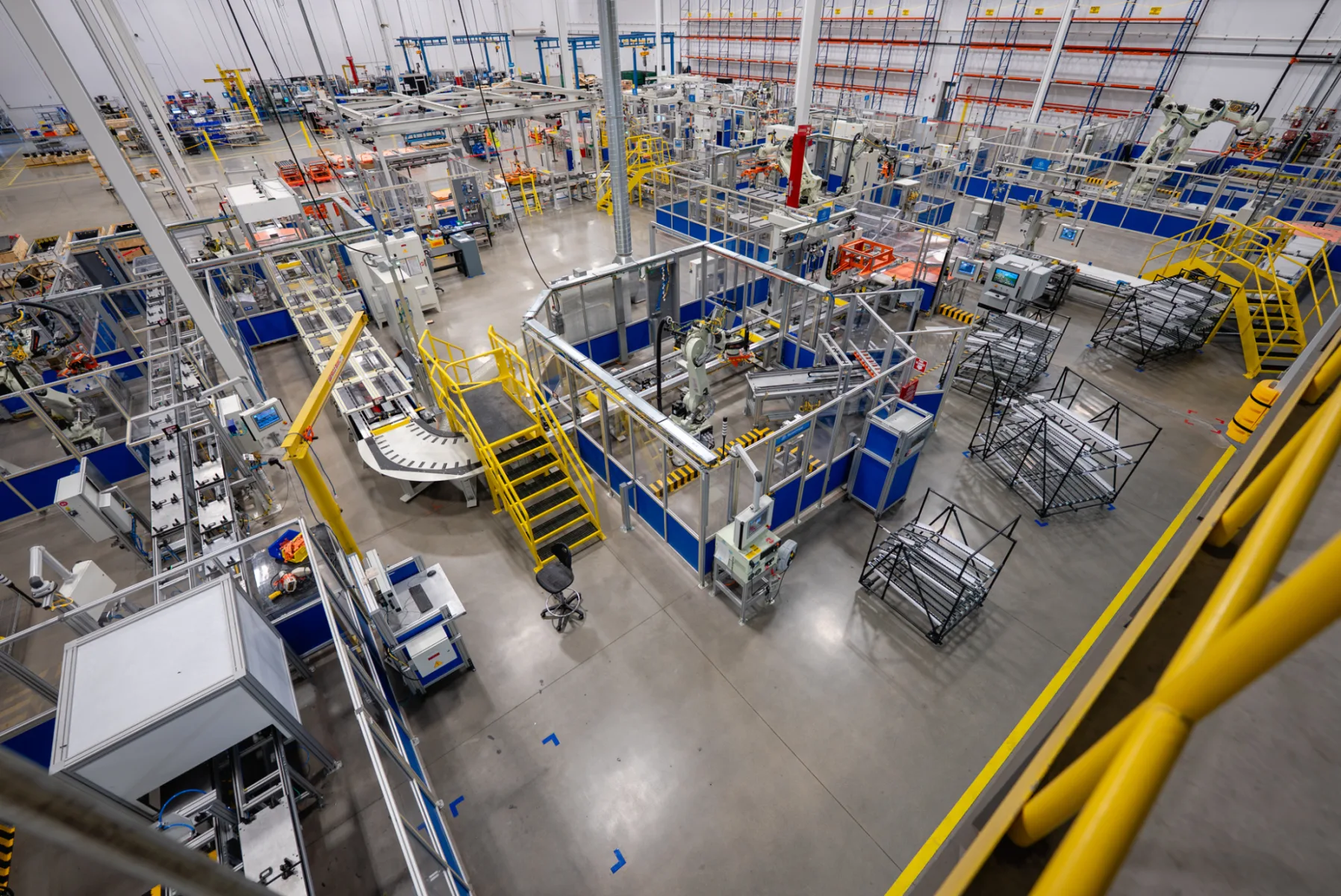

APPROX OVERALL AREA DIMENSIONS: 145' X 194'

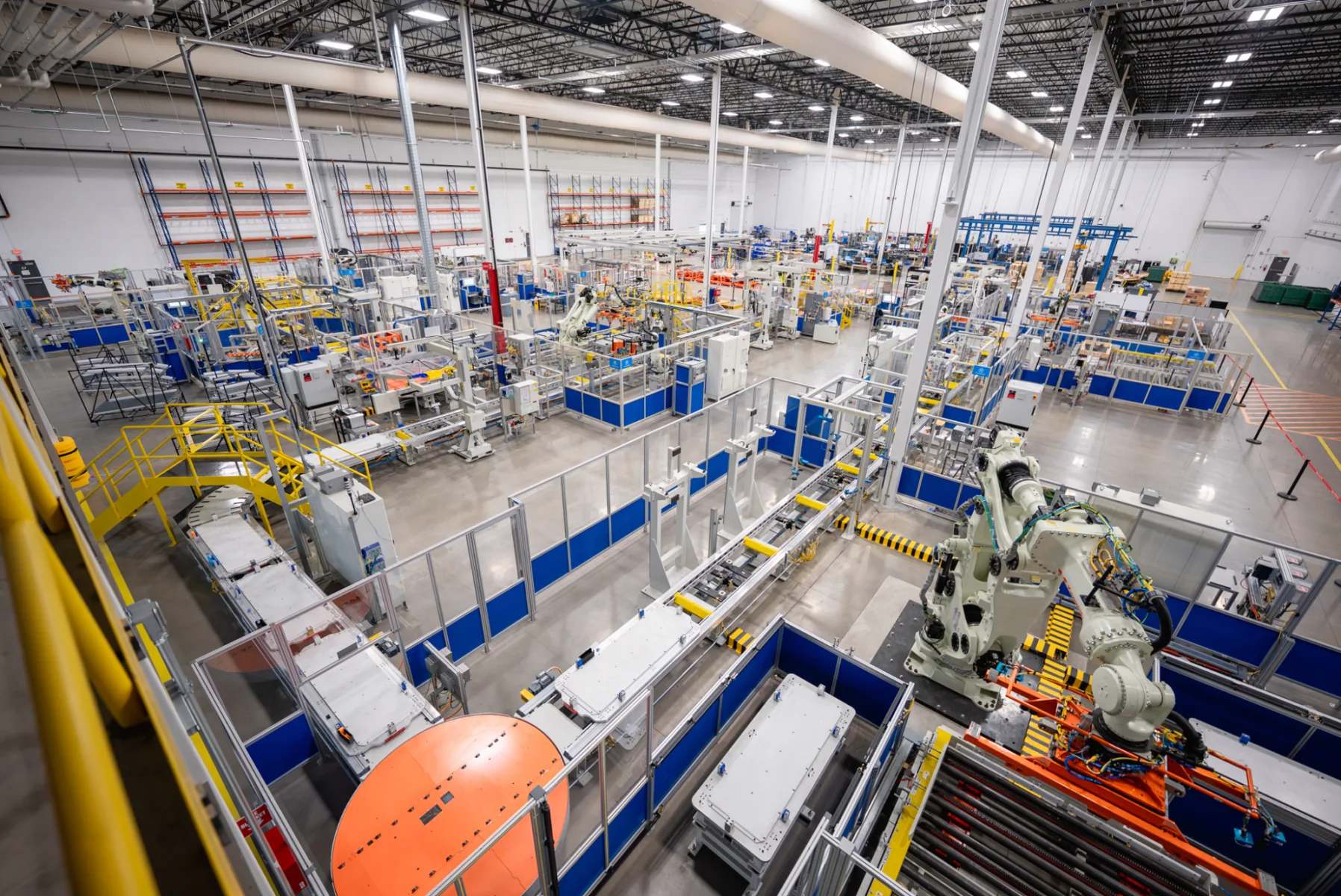

Line cell functions, organized by their Operation (OP) numbers.

OP 100 (Module Prep),

OP 200 (Module Marriage & Assembly),

OP 300 (Pack Enclosure & Final Finishing).

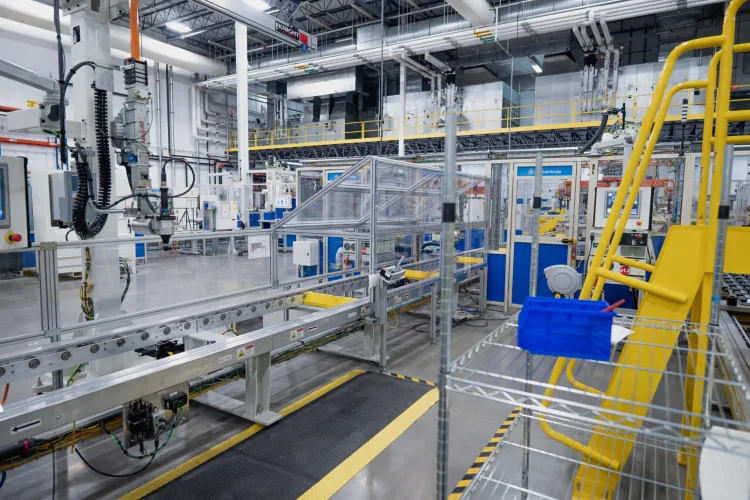

Loop 1: Module Preparation (OP 100 Series) Preparing individual battery modules before they are combined into larger packs.

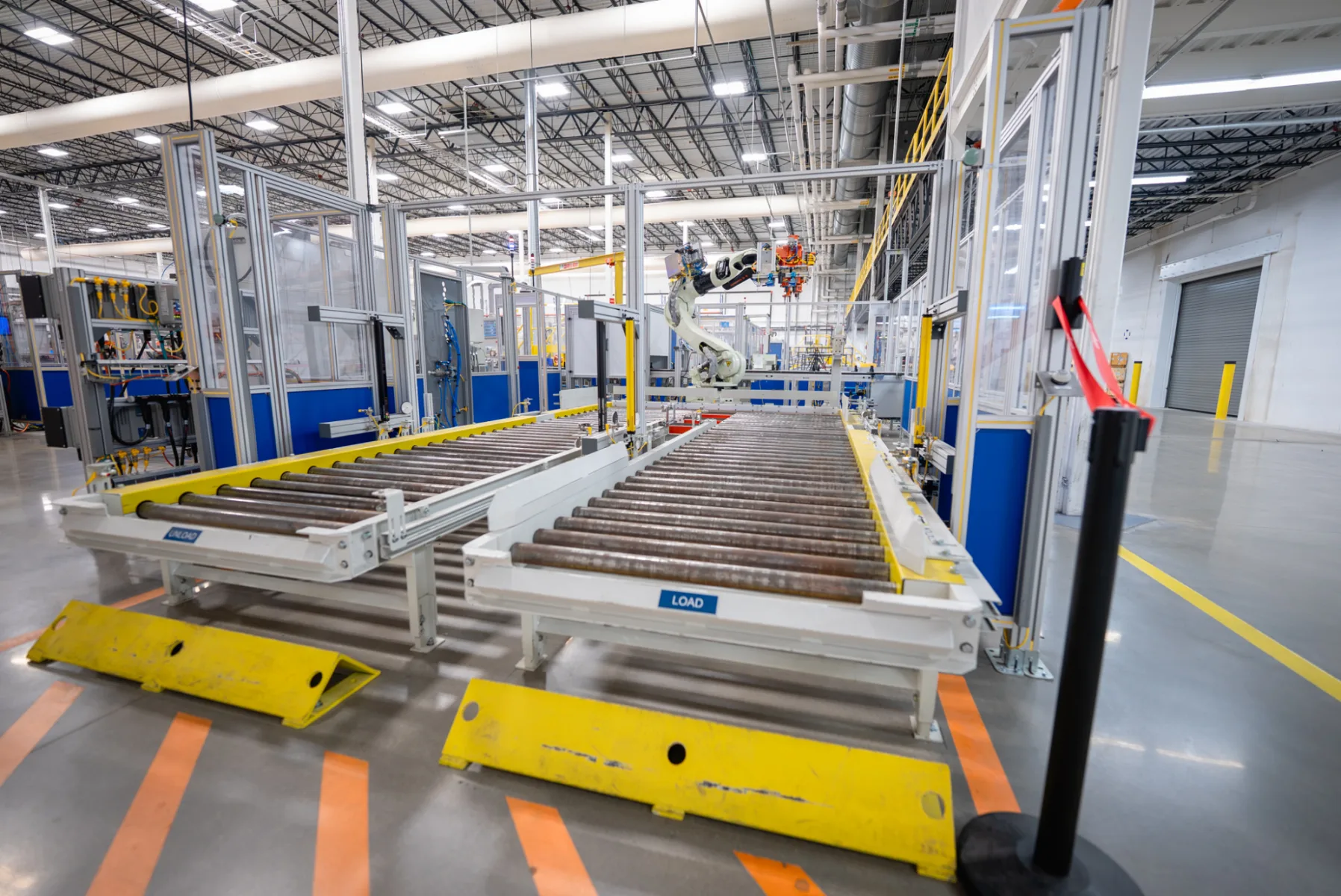

  • OP 100 – Input & Vision Scanning:

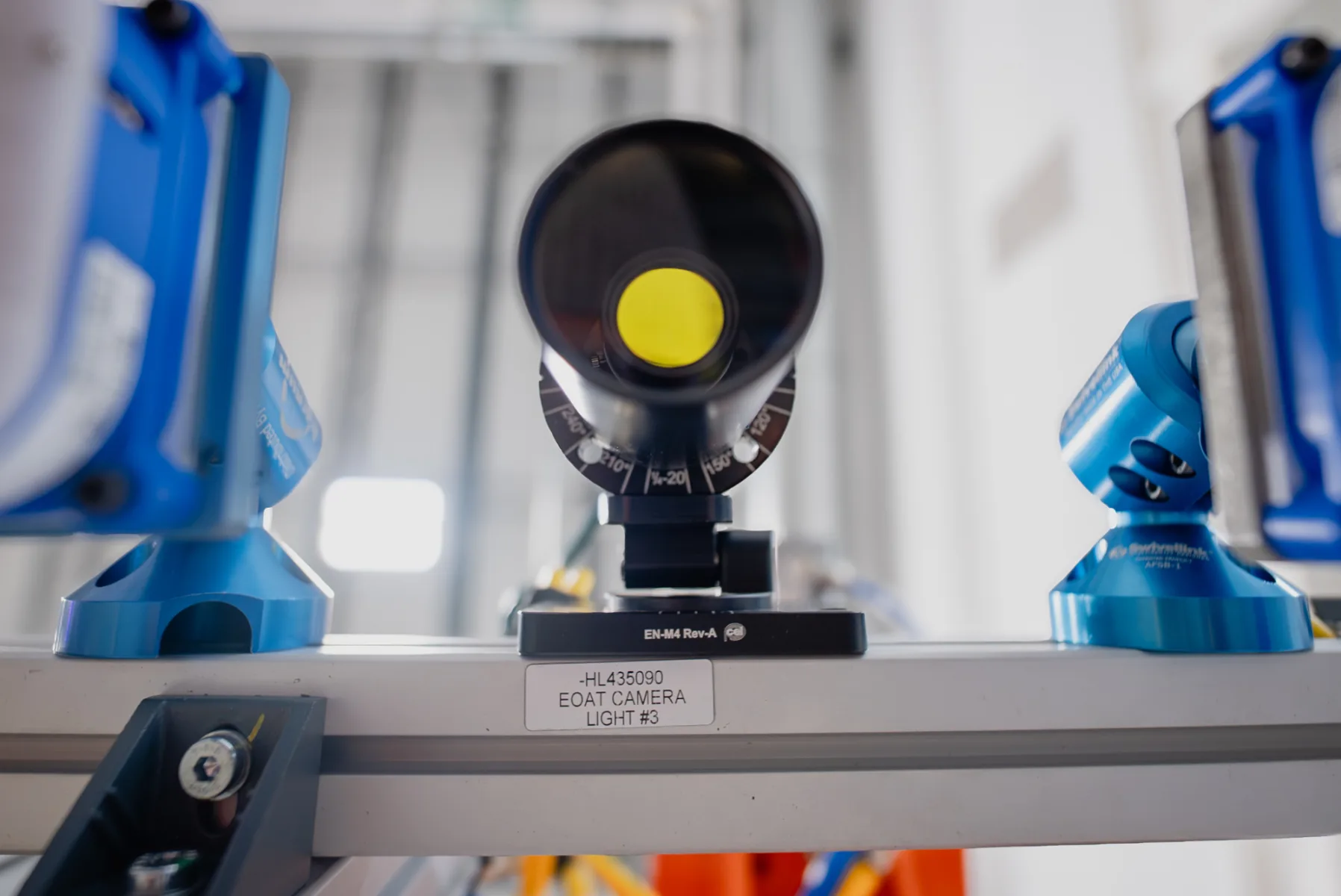

    • A Lucid/Keyence vision systems
  • OP 110 – Bracket & Board Installation:
    • Bosch anti-static boards/trays.
  • OP 120 – Module Electrical Testing:
    • voltage, temperature, and ACIR (Internal Resistance) CHECKS
  • OP 130 – Module Reject Spur:
    • diverted here to be pulled off the line if rejected.

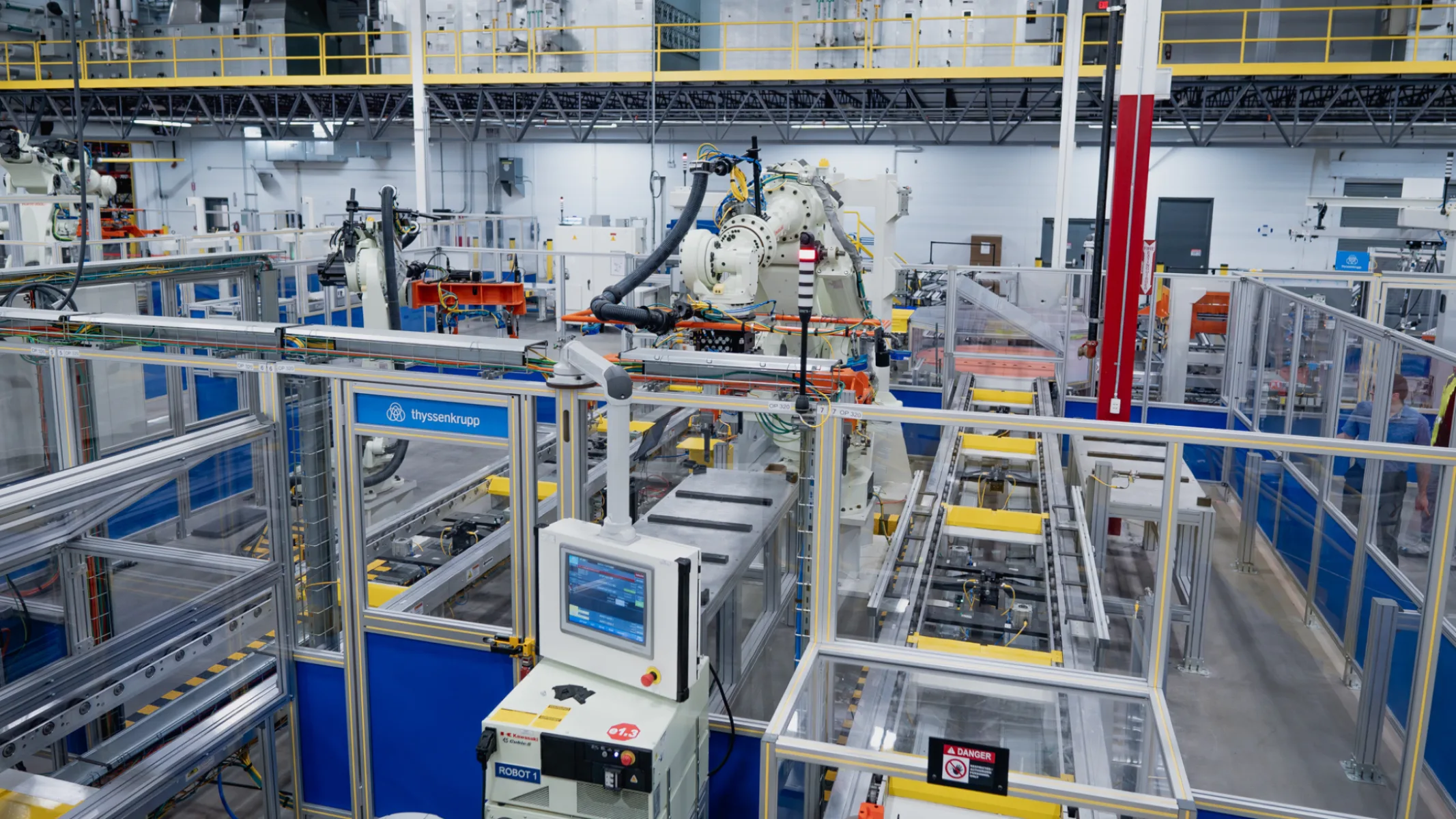

Loop 2: Marriage & "Ladder" Assembly (OP 200 Series)Merging the modules : Adhesive Application, and Busbar Installation.

  • OP 210 (A/B) – Cooling Fin Install & Leak Test:
    • OP 210A: Installation of cooling fins and cooling connectors onto the ladder frame. Vision cameras verify presence/alignment.
    • OP 210B: Pfeiffer Vacuum leak testing. The station presses down on the ladder to perform an automated leak check on the upper and lower sections.

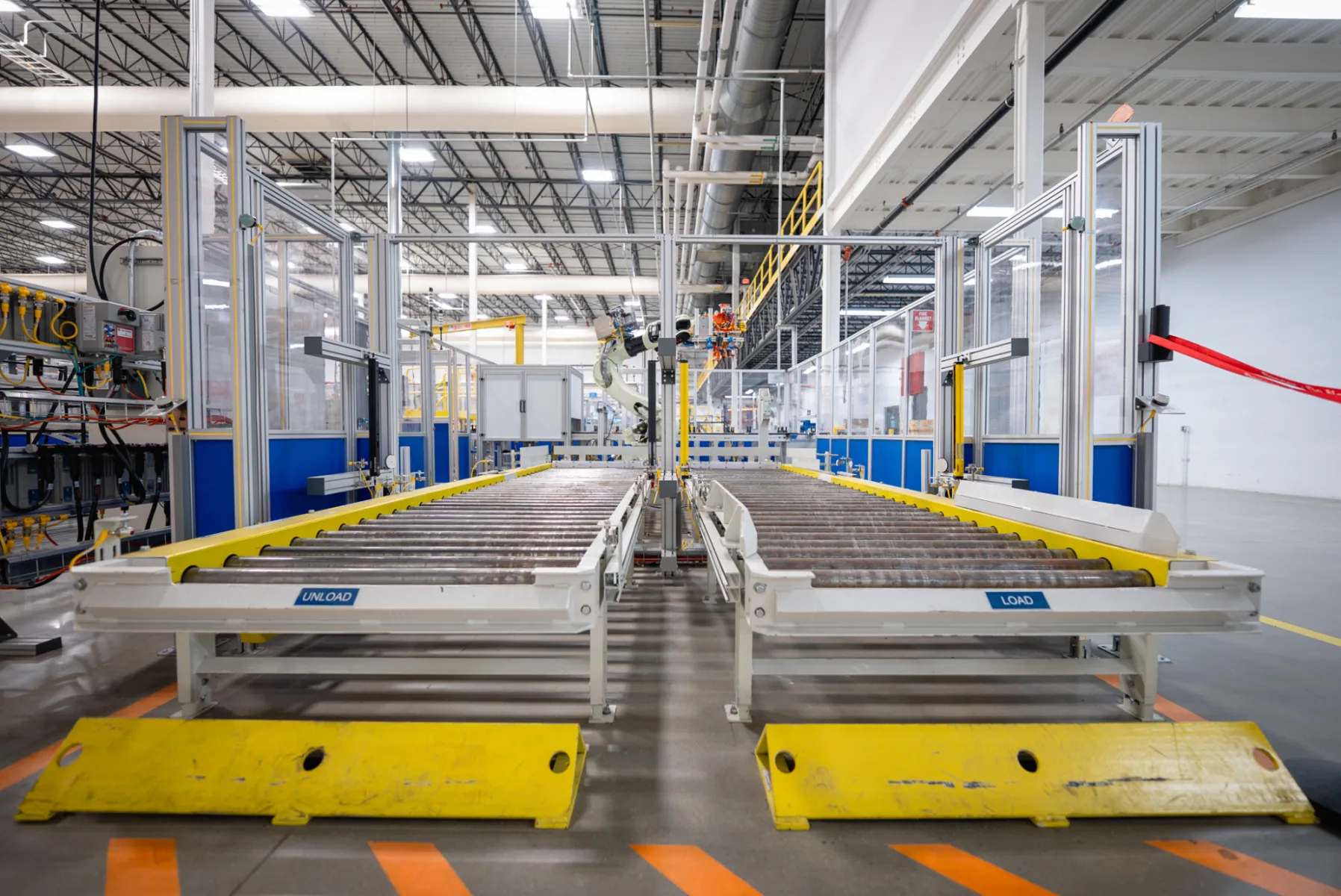

  • OP 220 – Ladder Loading:

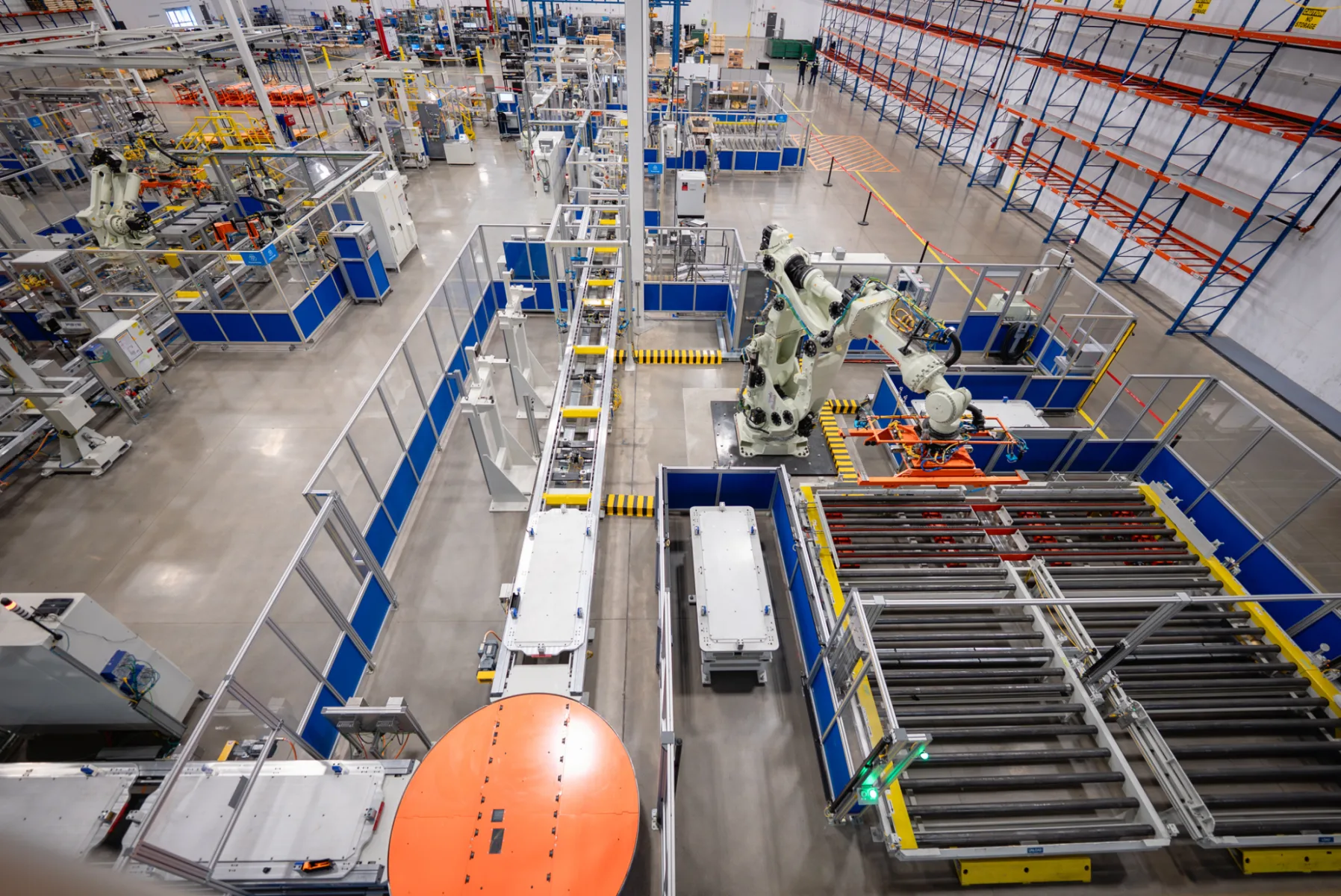

  • OP 230 – "Marriage Station" & Adhesive: Modules are bonded to the frame.
    • Rotary table/turntable and 4 adhesive dispensing units.
    • Robots:

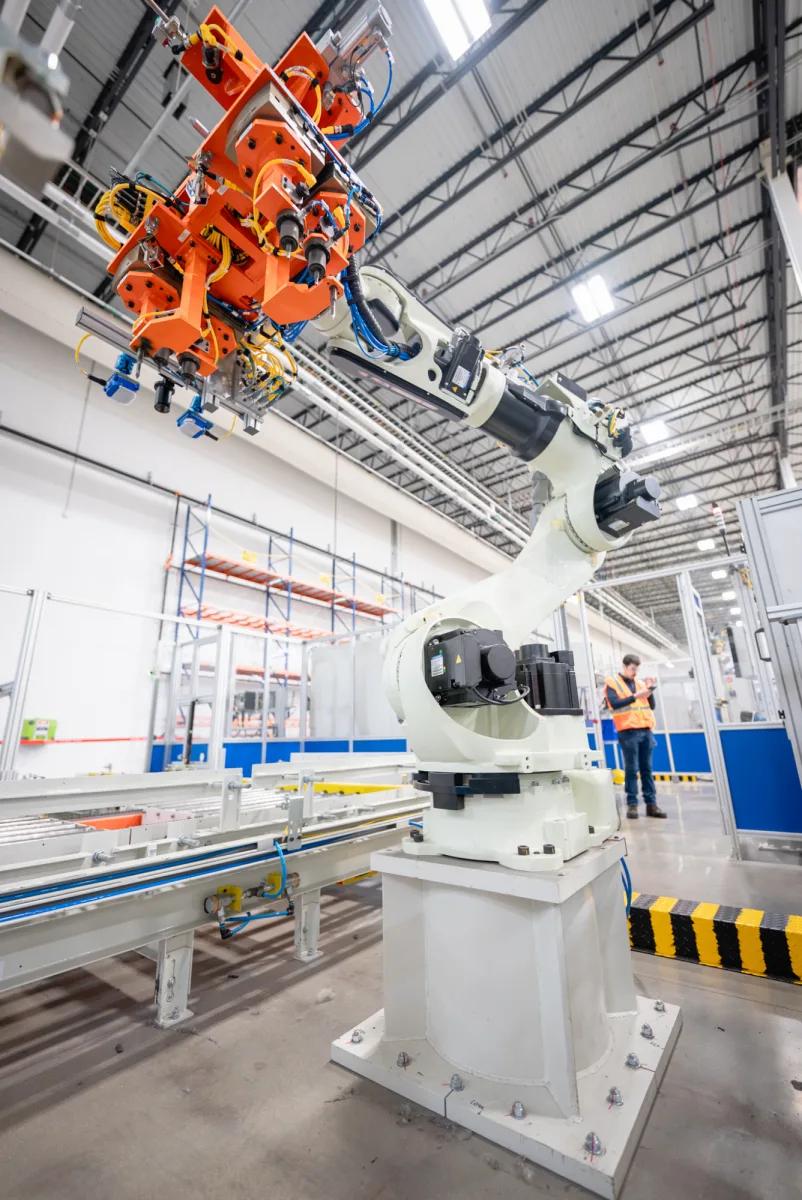

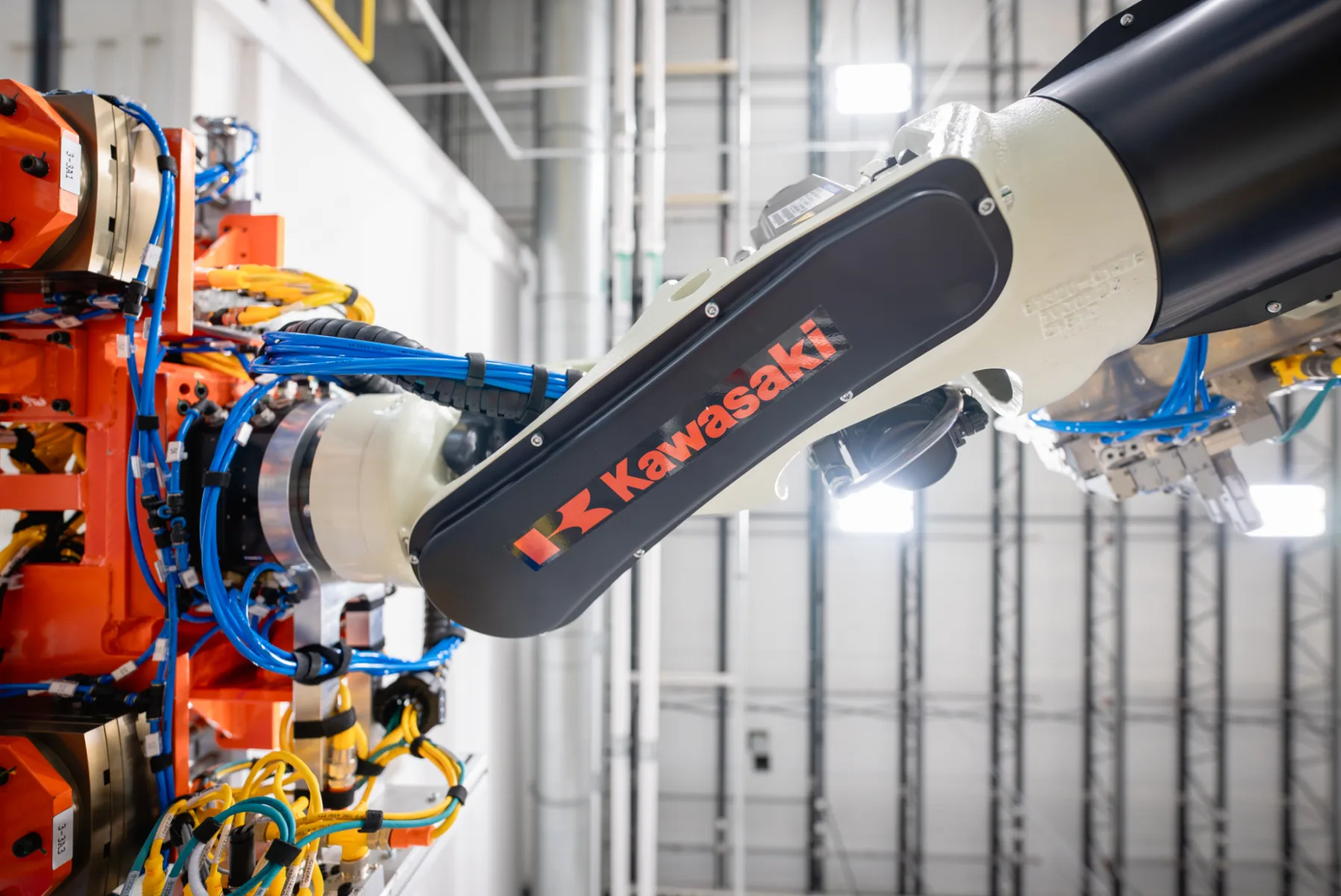

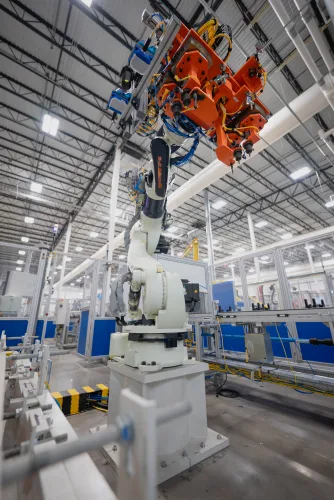

      • Kawasaki BX200: Picks and places the modules.
      • Kawasaki RS013: dedicated dispensing robot that applies the thermal glue/adhesive
      • Additional Robots TDB.
    • Curing: Drying Tunnel

OP 240 – Busbar Installation: (Bosch Rexroth nutrunners.)

  • OP 250 (A/B) – Inline Electrical Test:

Loop 3: Enclosure, High Voltage & Final Packout (OP 300 Series) End-of-Line testing.

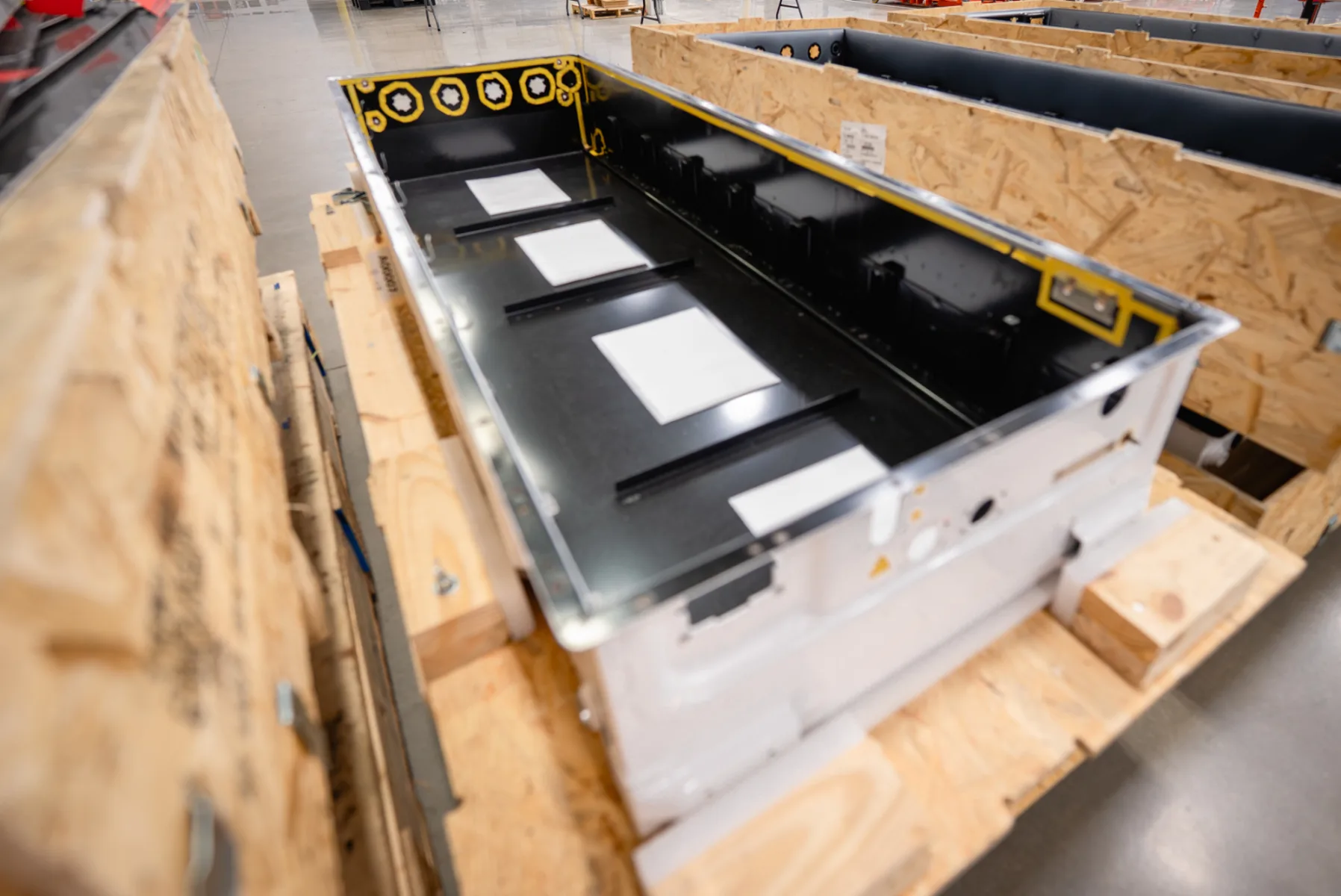

  • OP 300/320 – Enclosure Marriage:
  • OP 330 (A/B) – HV Assembly & Manifold Leak Test:
  • OP 350 – High Voltage & Lid Prep:
  • Lid Install Station (Associated with OP 350/370):
  • Final Leak Test:
  • OP 390 – End of Line (EOL) Electrical Tester:
    • Fully automated 8-minute cycle test
    • Finishing: Application of final labels/stickers, verified by a final vision check.

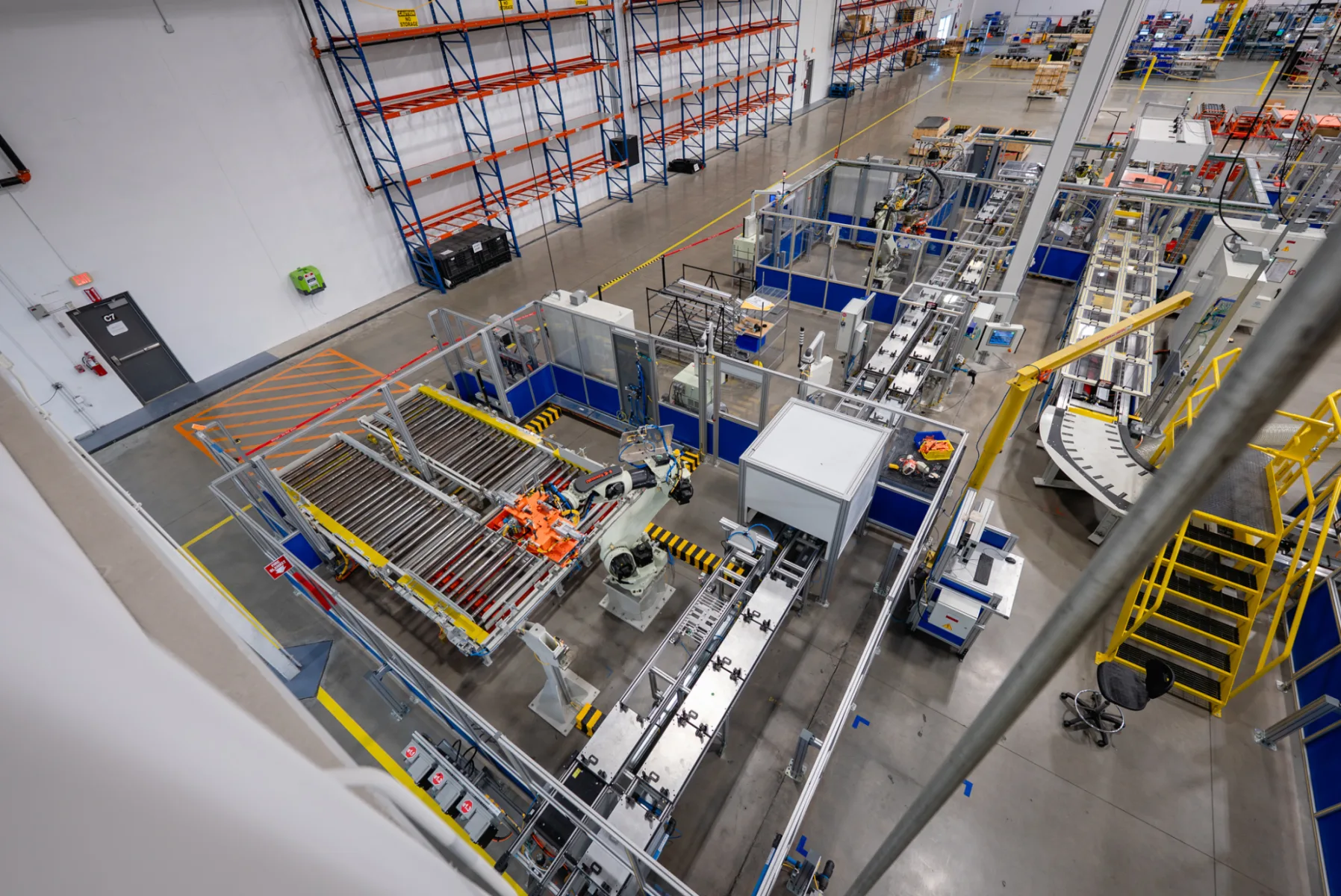

  • End of Line – Palletizing:
    • Equipment: Kawasaki MX700 "Godzilla" Robot..

Robotics & Automation

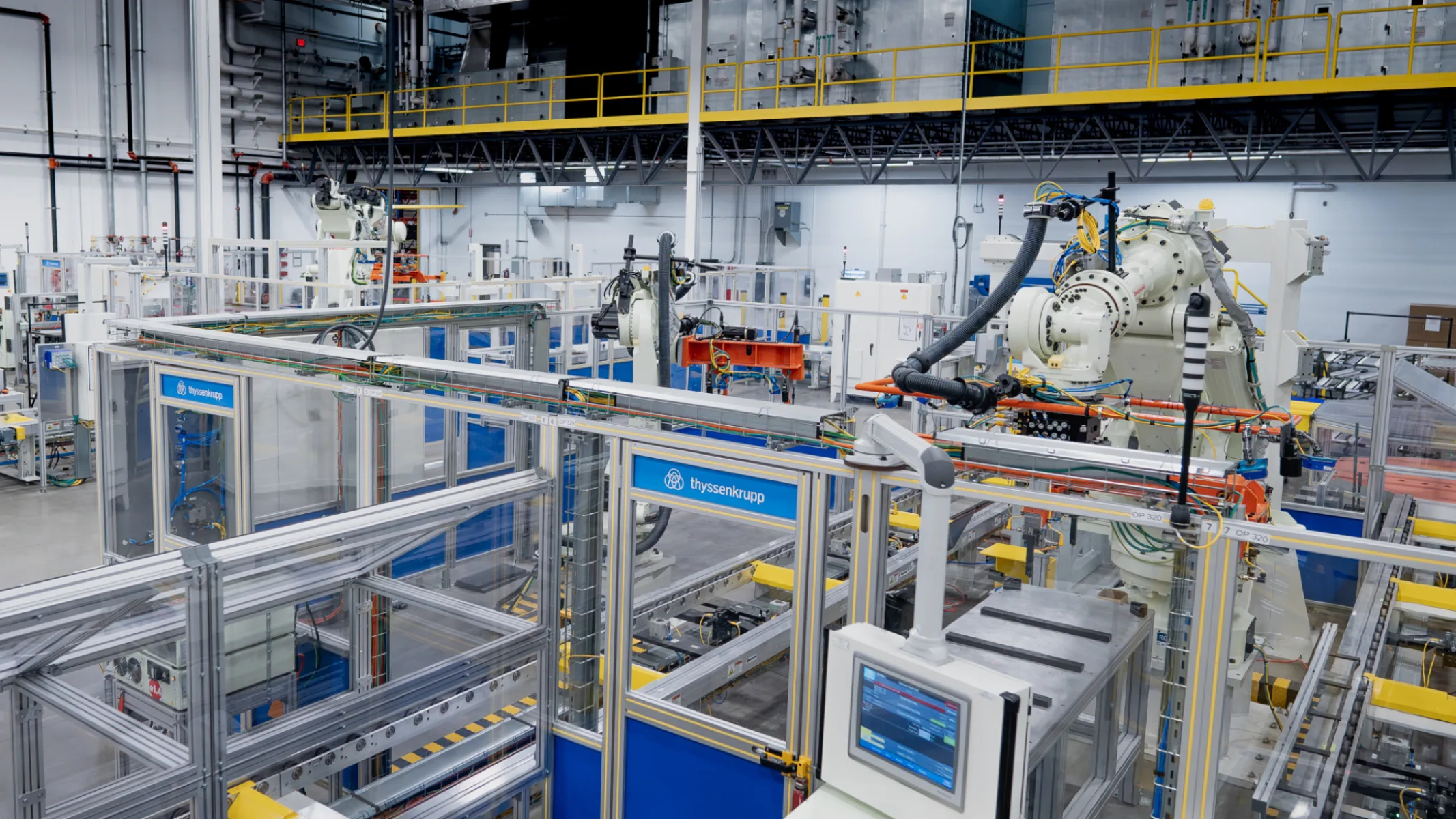

• ThyssenKrupp (TK): Manufactured the main electric control panels (480 VAC, 3-Phase) and is the overall system integrator for the line

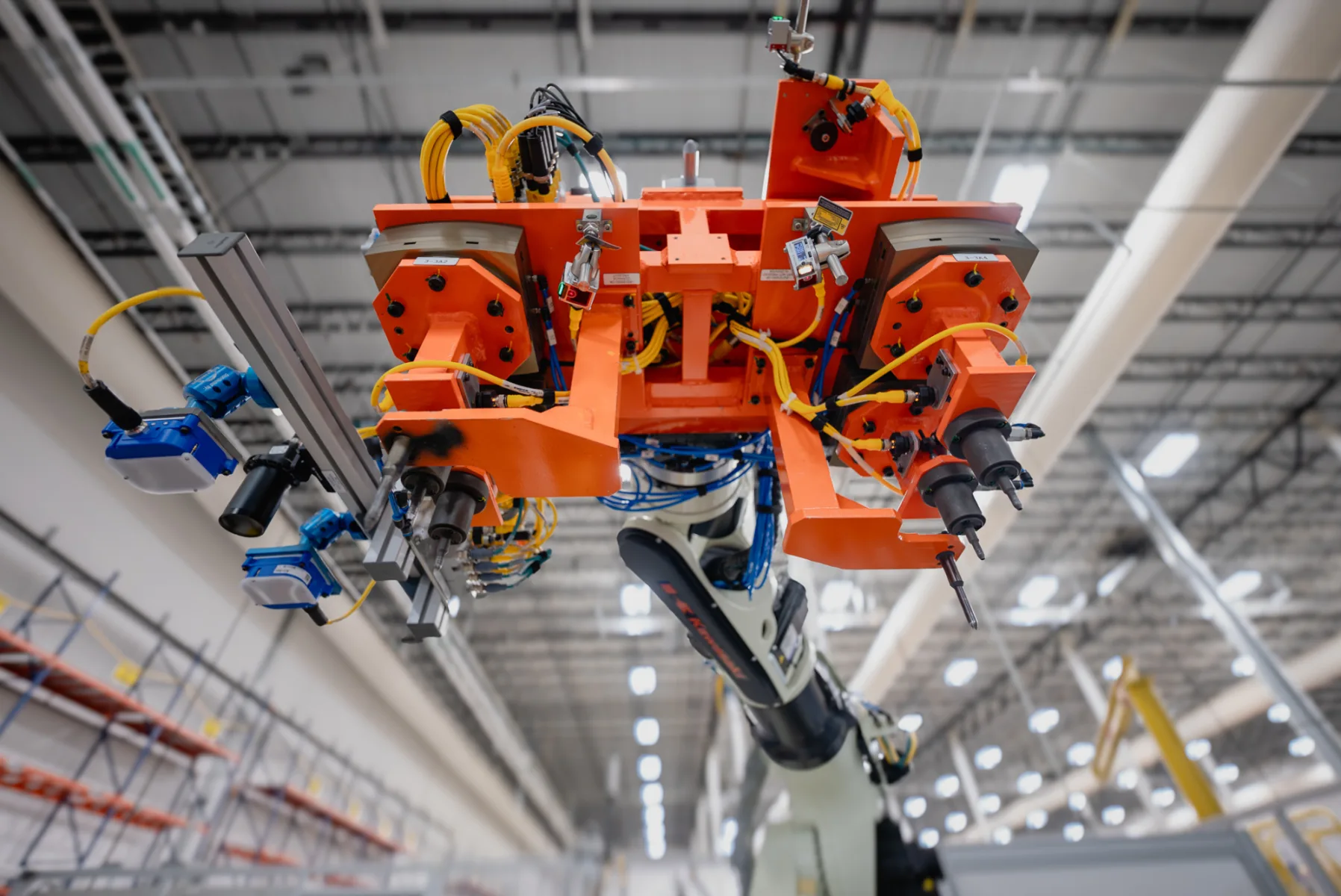

• Kawasaki:. Models include the BX200L (200kg payload) for general assembly, RS013NA (13kg payload) for dispensing/precision work, and the MX700 "Godzilla" (700kg payload) for heavy lifting at the end of the line,,,.

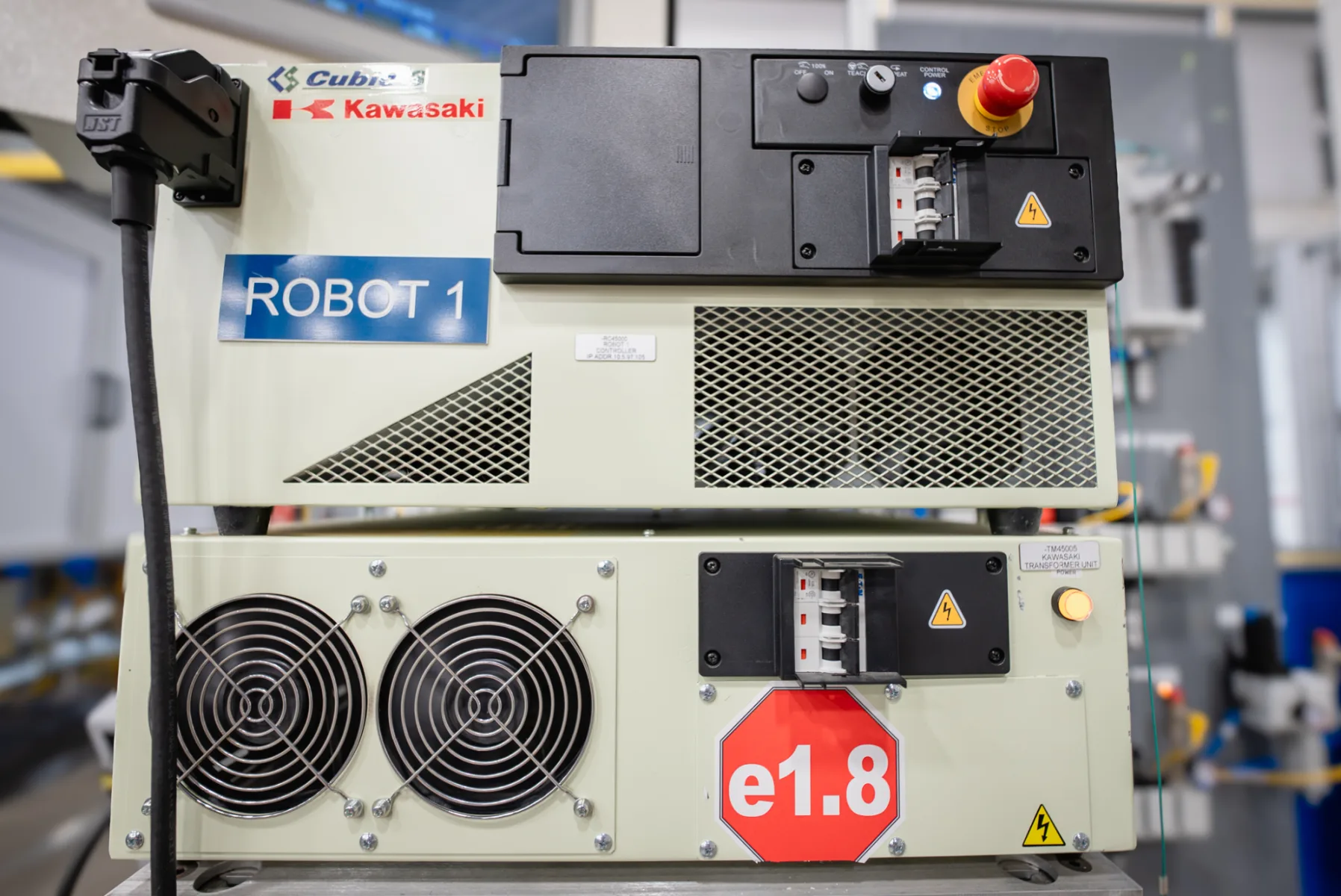

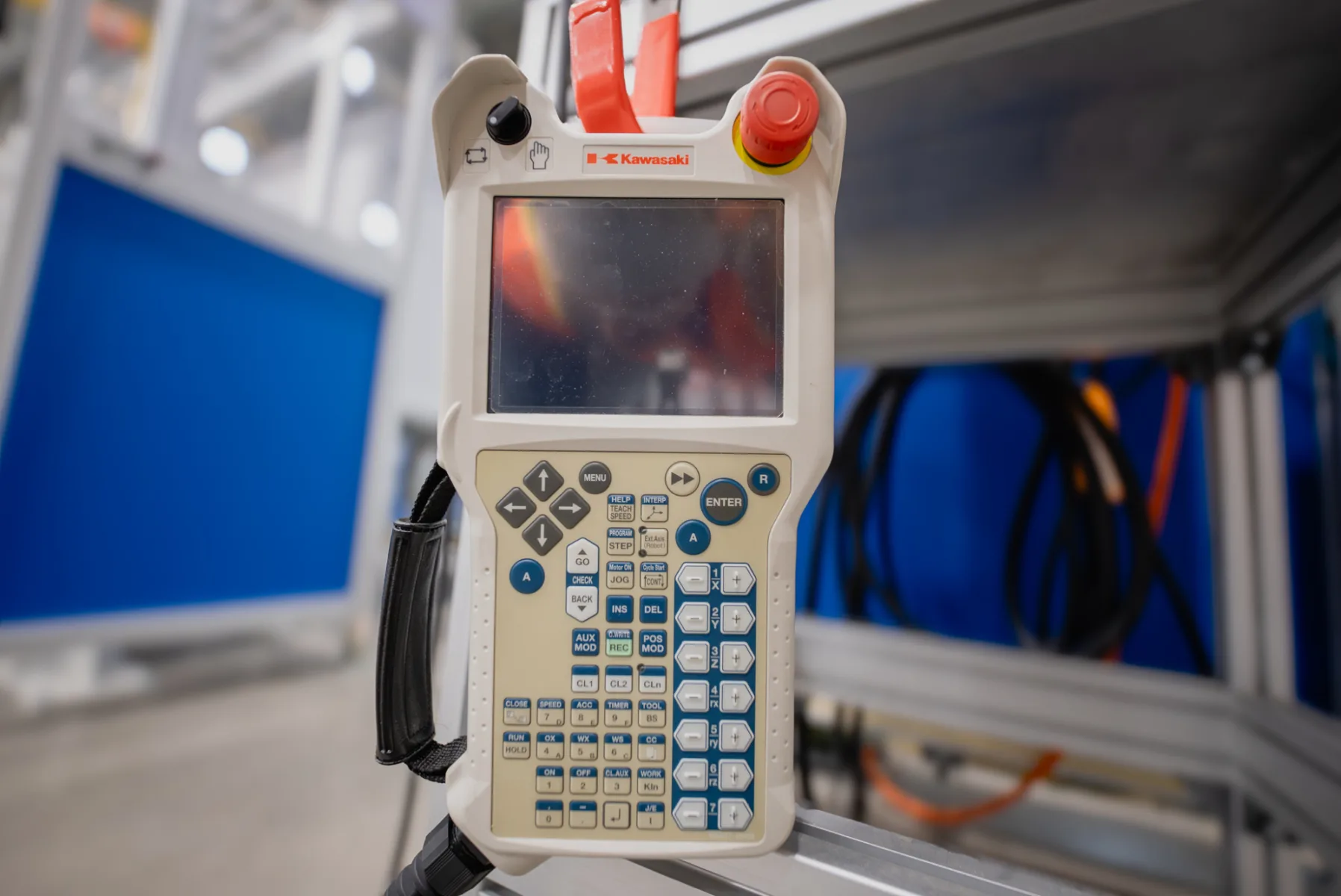

• Kawasaki (Controllers): The line uses Cubic-S safety controllers and models like E02G-A001 and E0F4F-A001,,.

• ThyssenKrupp (TK): Manufactured the main electric control panels (480 VAC, 3-Phase) and is the overall system integrator for the line,.

ManufacturerModelPayloadApplicationNotes
KawasakiBX200L C200 kgMain Assembly / HandlingMost common unit on the line; approx. 2021-2022 Mfg dates.
KawasakiRS013NA13 kgPrecision / AdhesiveLocated in OP 230.
KawasakiMX700ND700 kgHeavy Palletizing"Godzilla" unit; handles completed battery packs.

Controls, Safety & Electronics

• Allen Bradley (Rockwell Automation): Extensive use of GuardLogix PLCs,

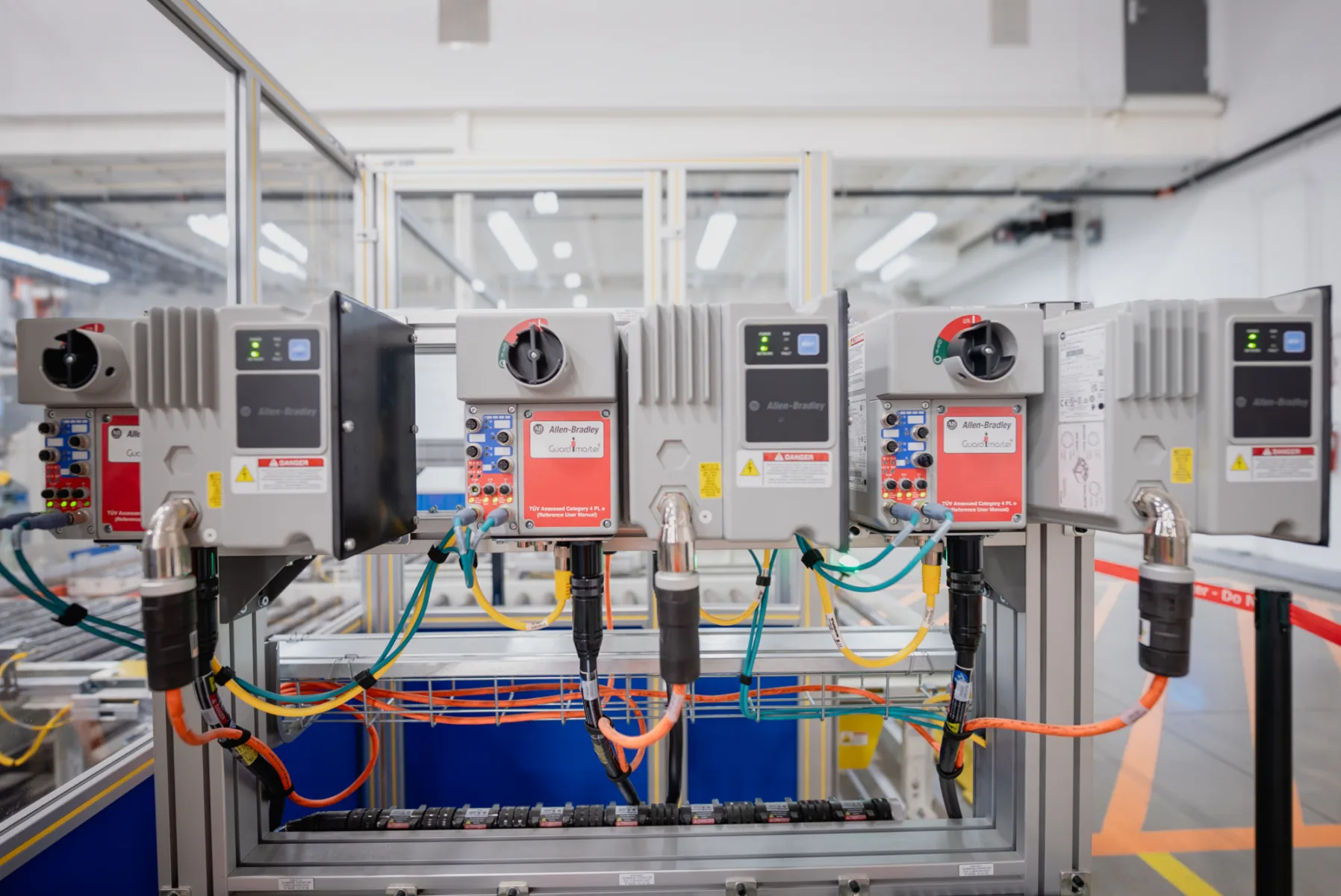

• ArmorStart safety control modules (distributed IO),

• PanelView Plus HMI (Human Machine Interface) screens, and Guard Master

• Euchner: CTP/CBP safety bolt locks

• Hirschmann: Octopus OS20 managed IP67 network stations.

• Banner: EZ-Screen light guard systems used for safety curtains.

Conveyance & Material Handling

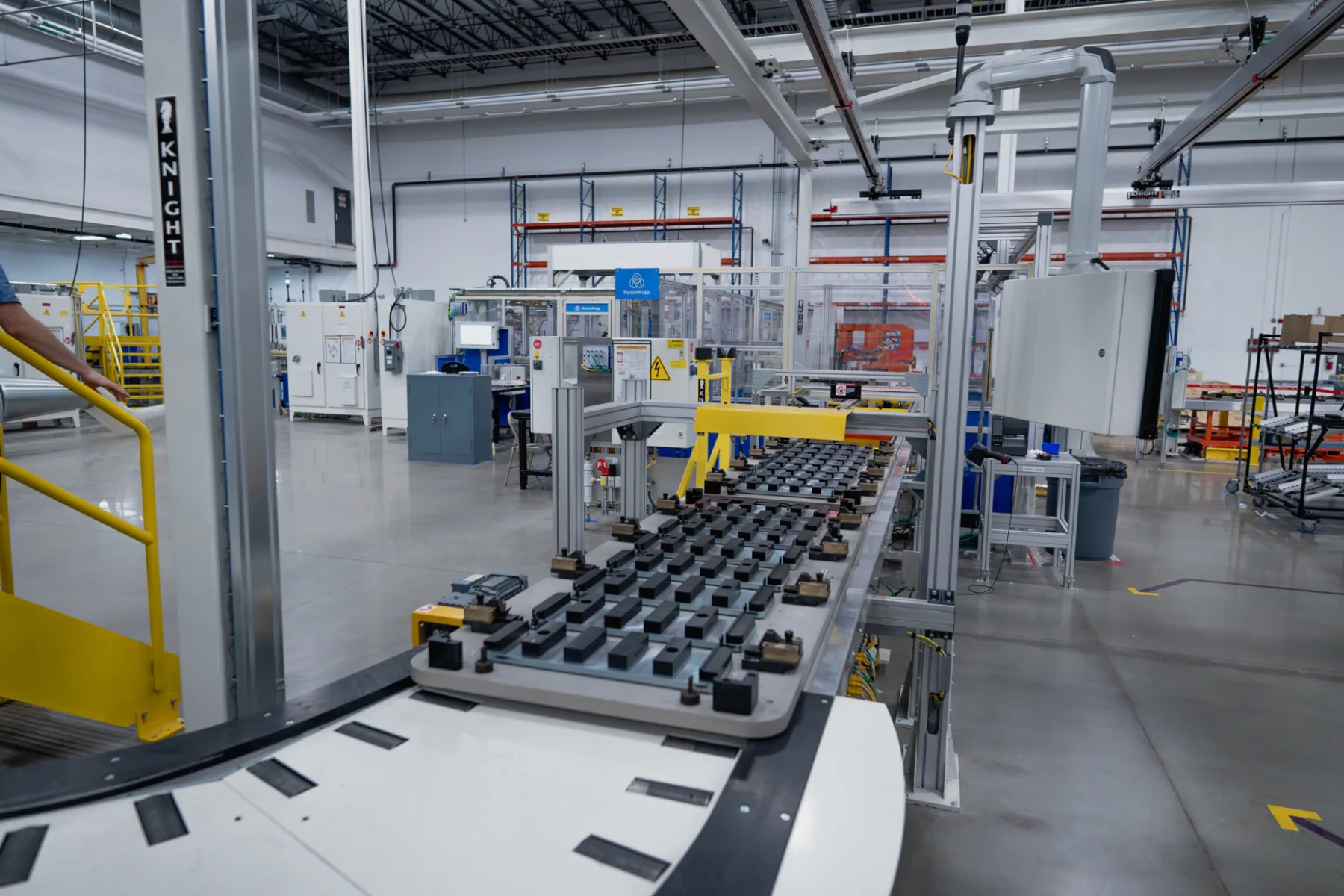

• Bosch Rexroth: Chain conveyor lines and the anti-static module pallets

• Hovair Automotive: Dunnage conveyor systems featuring 6-motor drives.

Vision, Inspection & Sensors

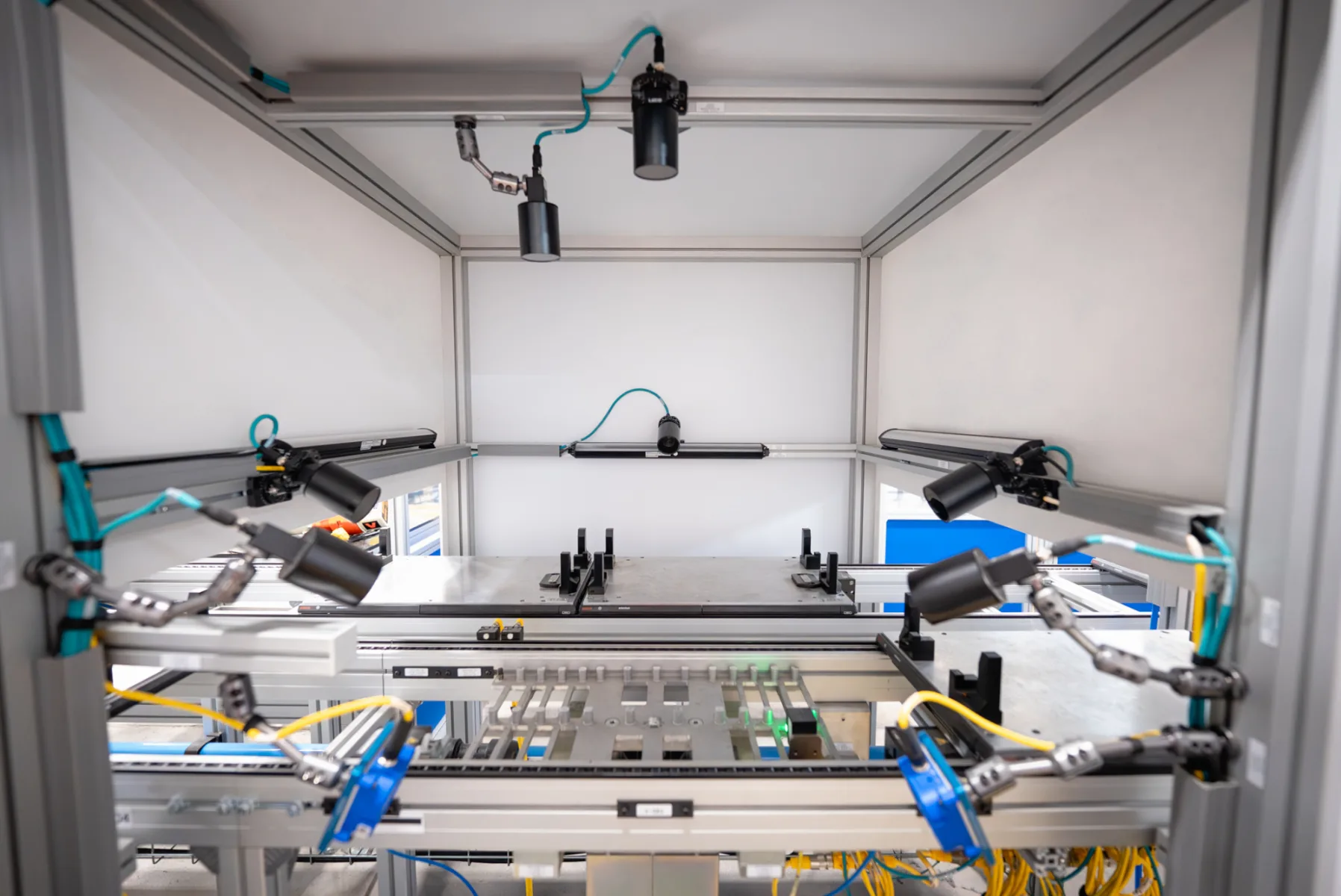

• Lucid: TR I0505-C vision scanners.

• Keyence barcode scanners, LRTB 2000C monitoring systems, and pallet tracking sensors

• Metaphase: ISO-23 series LED lighting integrated into the camera inspection stations.

• Pfeiffer Vacuum: leak testing units

Assembly & Process Hardware

• Bosch Rexroth: Automated nutrunners (tightening spindles)

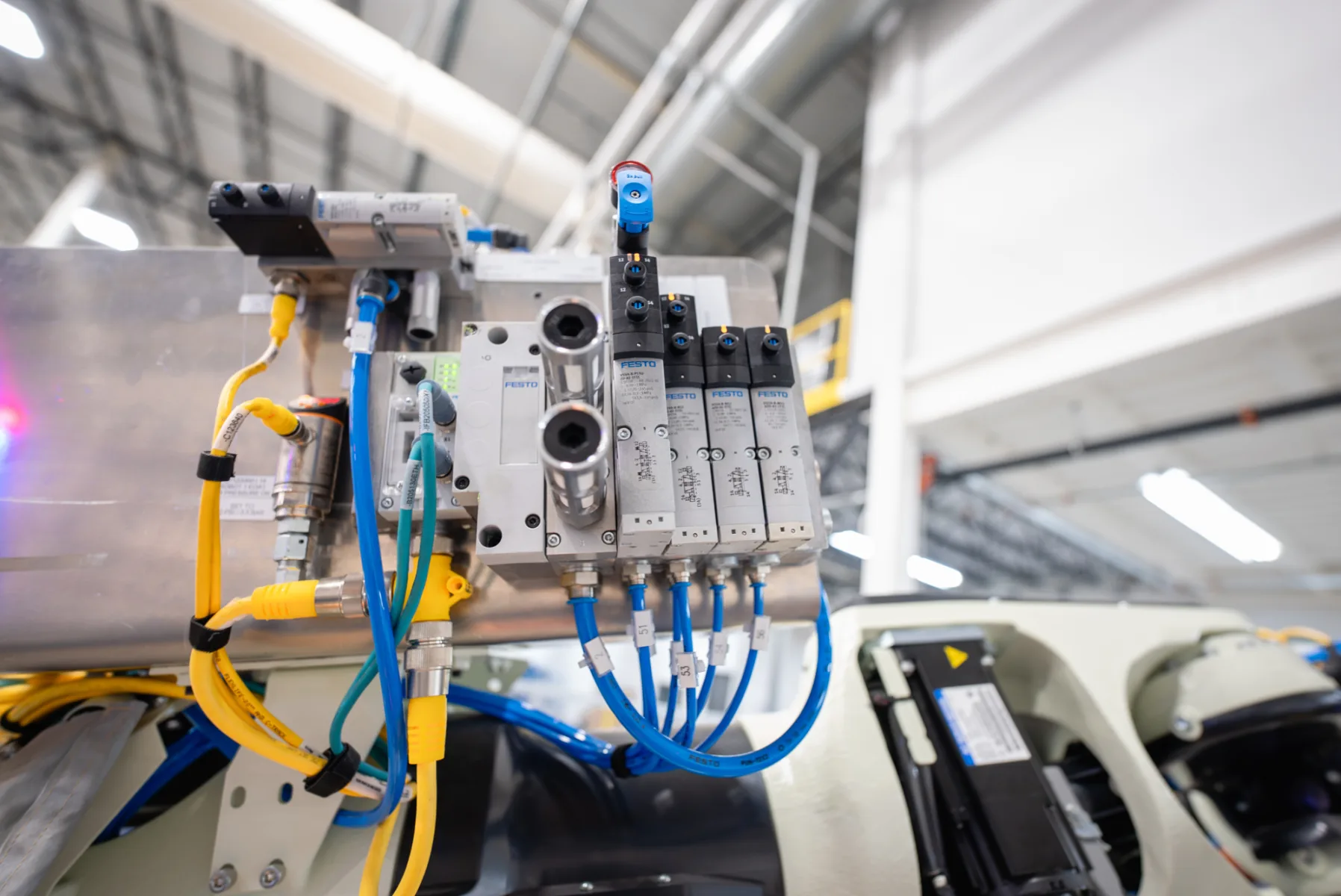

• Festo: Pneumatic systems, including digital air pressure regulators, air filters, and pneumatic controllers.

• EXAIR Corporation: Gen 4 Super Ion Air Knives Static elimination.



For more details, please contact Jonathan Monterrosa at: [email protected]



Location Notes

Midland, Michigan

}
