SMG Schuler High-Capacity Hydraulic Tandem Press Line & Individual Presses – PRIVATE TREATY

Preview

Inspection available by appointment on request - call our office for more info!

Auction Type

Private Treaty

Description

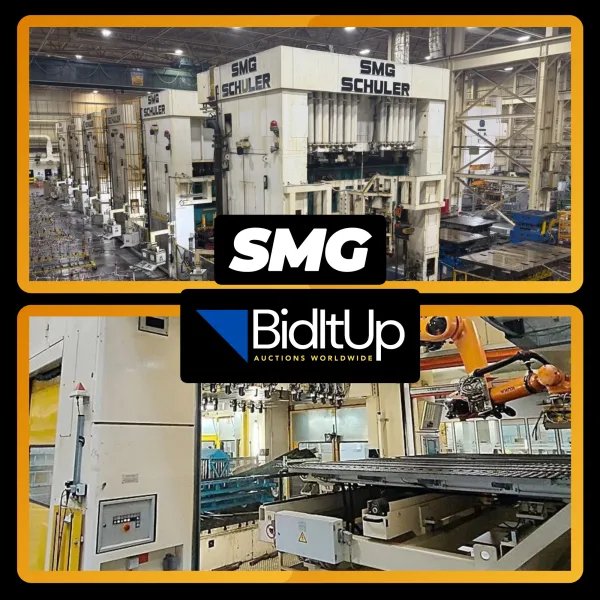

SMG Schuler High-Capacity Hydraulic Tandem Press Line & Individual Presses

PRIVATE TREATY – AVAILABLE FOR IMMEDIATE SALE

BidItUp Auctions Worldwide is pleased to offer a rare opportunity to acquire a 3,250-Ton Schuler Model HZPUI-T Hydraulic Tandem Press Line and a selection of individual SMG Schuler Hydraulic Presses.

Located in Detroit, Michigan, these assets represent a high-performance solution for large-scale automotive stamping and deep-draw applications. This is an immediate-sale opportunity for late-model, German-engineered machinery with massive bed areas and proven reliability.

OFFERING OVERVIEW: THE 3250-TON TANDEM LINE

SCHULER Model HZPUI-T Hydraulic Tandem Press Line (3250/2000/1500/1500/1500) This complete production line consists of:

• (1) Lead Press: SMG Schuler HZPUI-T 3000/1800-5400/2450 (Double Action)
• (1) Follow-up Press: 2,000-Ton Schuler HZPU-T (HZPUI-2000)
• (3) Follow-up Presses: 1,500-Ton Schuler HZPU-T (HZPU-T 1350)
• Capacity: Total line capacity of 3,250 Tons, ideal for body-in-white and structural components.

TECHNICAL SPECIFICATIONS BY UNIT

PRESS 1 (LEAD PRESS / TANDEM LINE LEAD)

• Model: SMG SCHULER HZPUI-T 3000/1800-5400/2450
• Total Force: 3,000 Tons (30,000 kN)
• Slide Stroke: 1325 mm
• Bed Area: 5400 mm x 2450 mm
• Machine Weight: 417,125 kg
• Year of Construction: 1995

PRESS 2

• Model: SMG SCHULER HZPU-T 1800-5400/2450 (SCHULER HZPUI-2000 - 212"/96")
• Total Force: 2,000 Tons (18,000 kN)
• Slide Stroke: 1100 mm
• Bed Area: 5400 mm x 2450 mm
• Total Machine Weight: Approx. 440 US Tons
• Year of Construction: 1995

PRESSES 3, 4, 5 & 6

• Model: SMG SCHULER HZPU-T 1350-5400/2450 (SCHULER HZPU-T 1500 - 212"/96")
• Total Force: 1,350 Tons (13,500 kN)
• Slide Stroke: 1100 mm
• Bed Area: 5400 mm x 2450 mm
• Year of Construction: 1995

ADVANCED FEATURES & ACCESSORY EQUIPMENT

• Controls: SMG Numeric Control D1 with integrated diagnostic screens.
• Tooling/Bolsters: Each press features two bolsters movable to the left and right, designed for max die weights of 68 Tons.
• Precision Systems: Thermostatically controlled oil cooling, centralized motor-pump lubrication, and hydraulic damping (25 mm damping stroke).
• Safety Features: Integrated light curtains (front/rear), safety guards for die change area, and mechanical slide locking at Top Dead Center (TDC).
• Electrical: 460V Three-phase (Operating) / 110V (Lamp/Control) / 60 Hz frequency.

ASSET LOCATION & INSPECTION

• Location: Detroit, Michigan, USA
• Status: Available for Immediate Sale
• Inspection: Available by appointment only.

For pricing, technical manuals, and to schedule an inspection, please contact:

Inquiries: [email protected]

Offer Submission: [email protected]
