Tesla Manz Battery Production Line - PRIVATE TREATY

Date & Time

Sunday, Jul 20, 2025 - 07:30am (CDT) Central Daylight Time

Preview

By Appointment Only

Auction Type

Private Treaty

Description

🔋 Battery Module Production Line – Available by Private Treaty

Now Available for Immediate Offer
Contact: Tara Shaikh | [email protected]

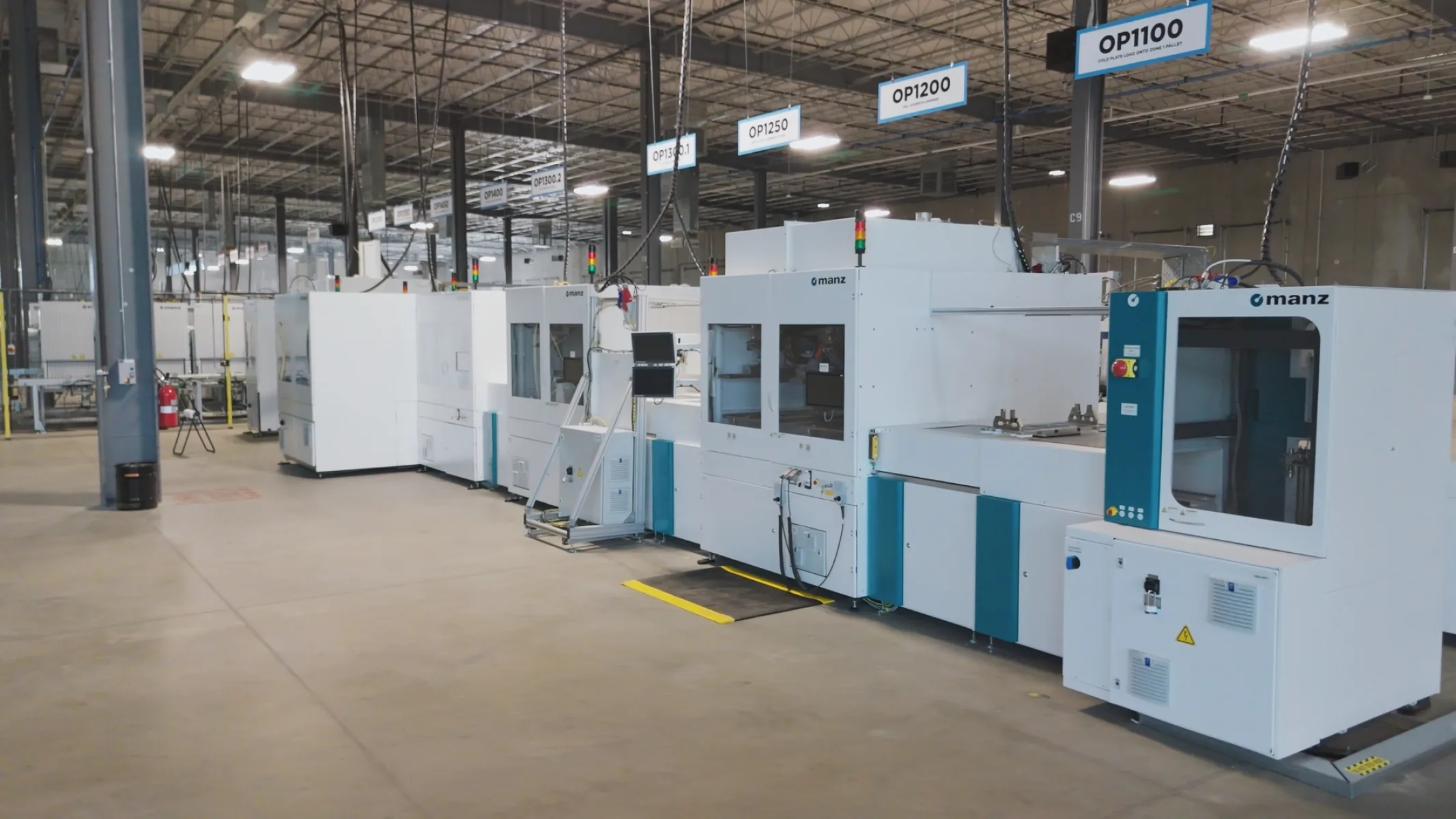

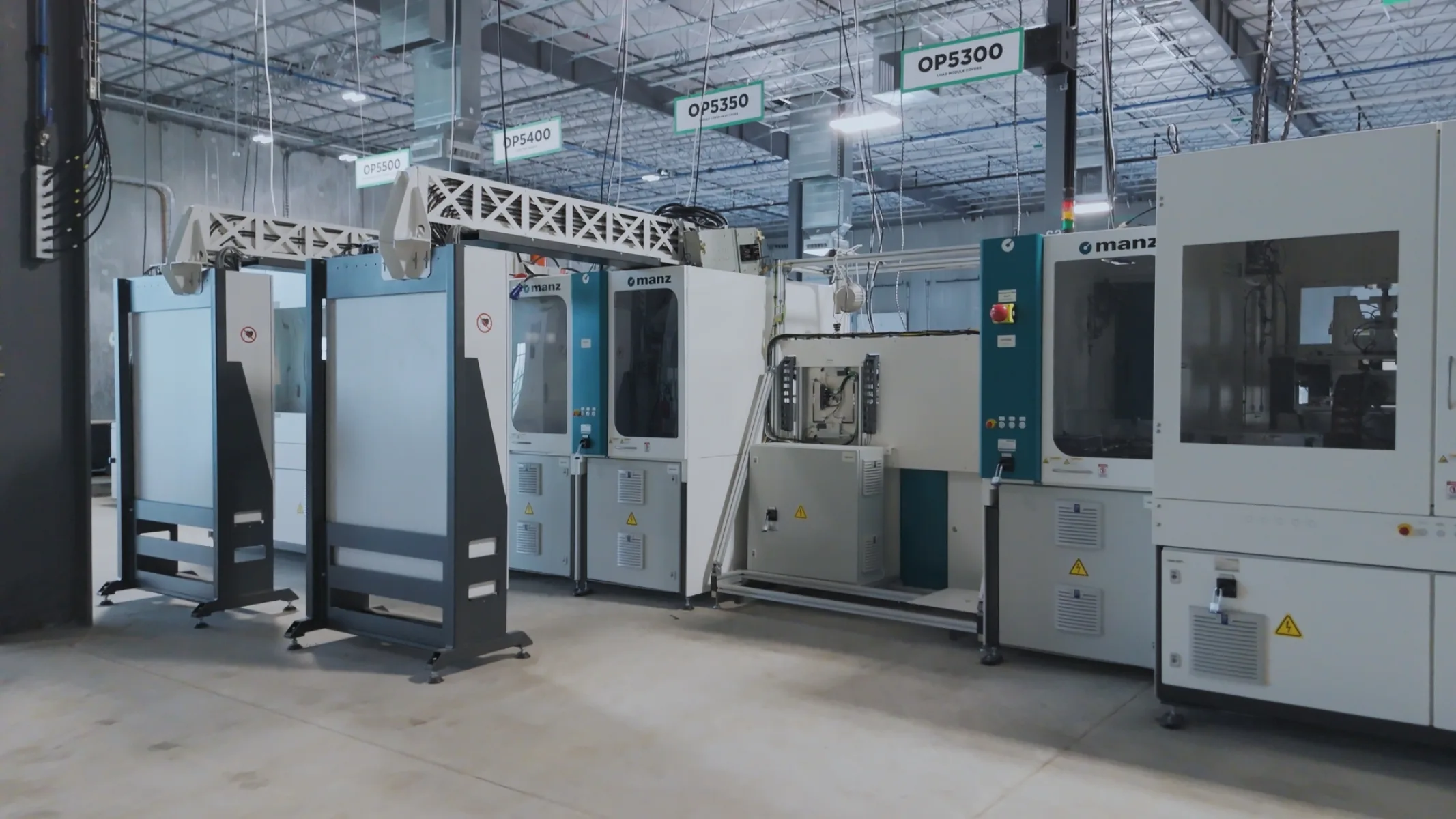

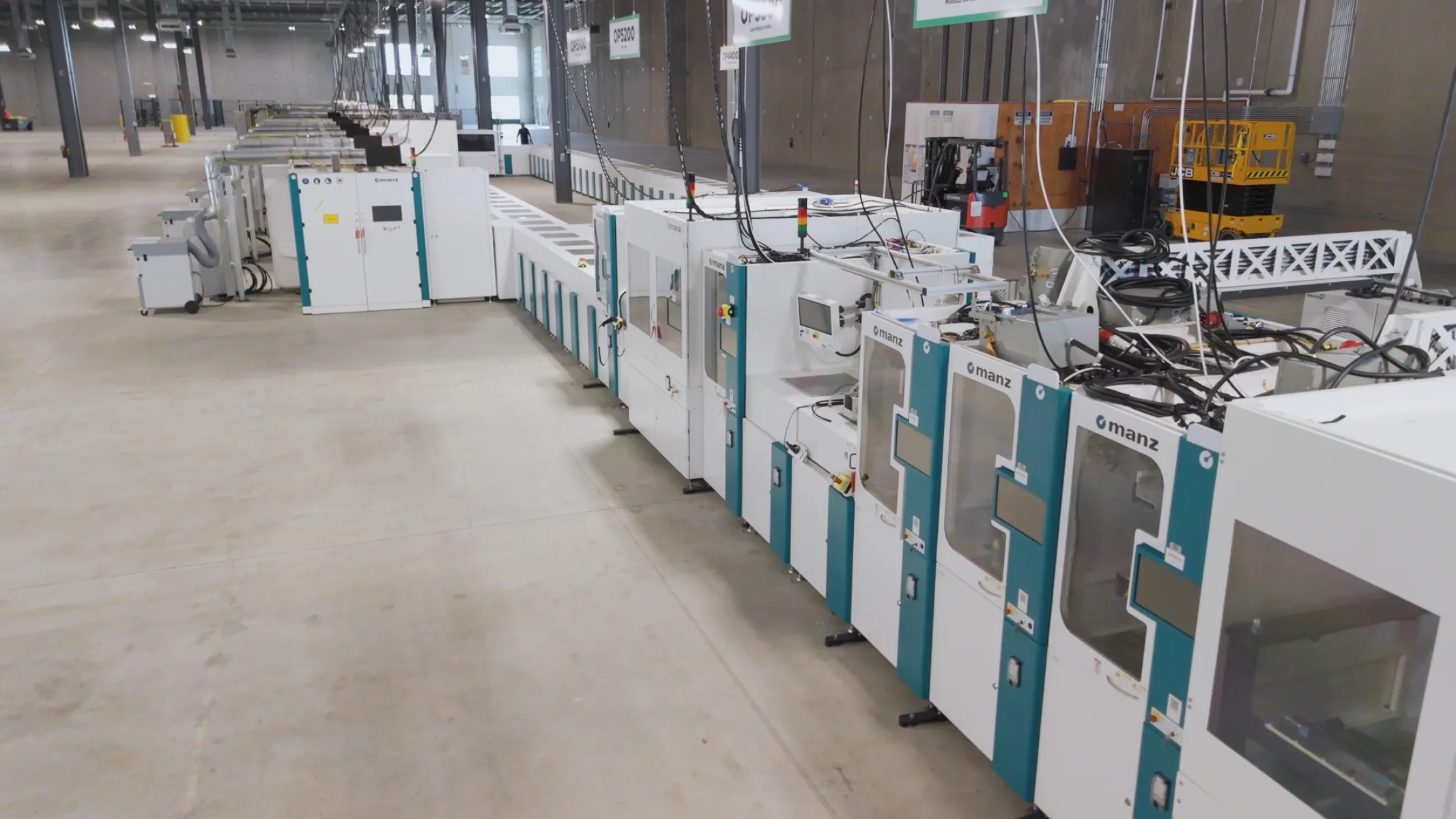

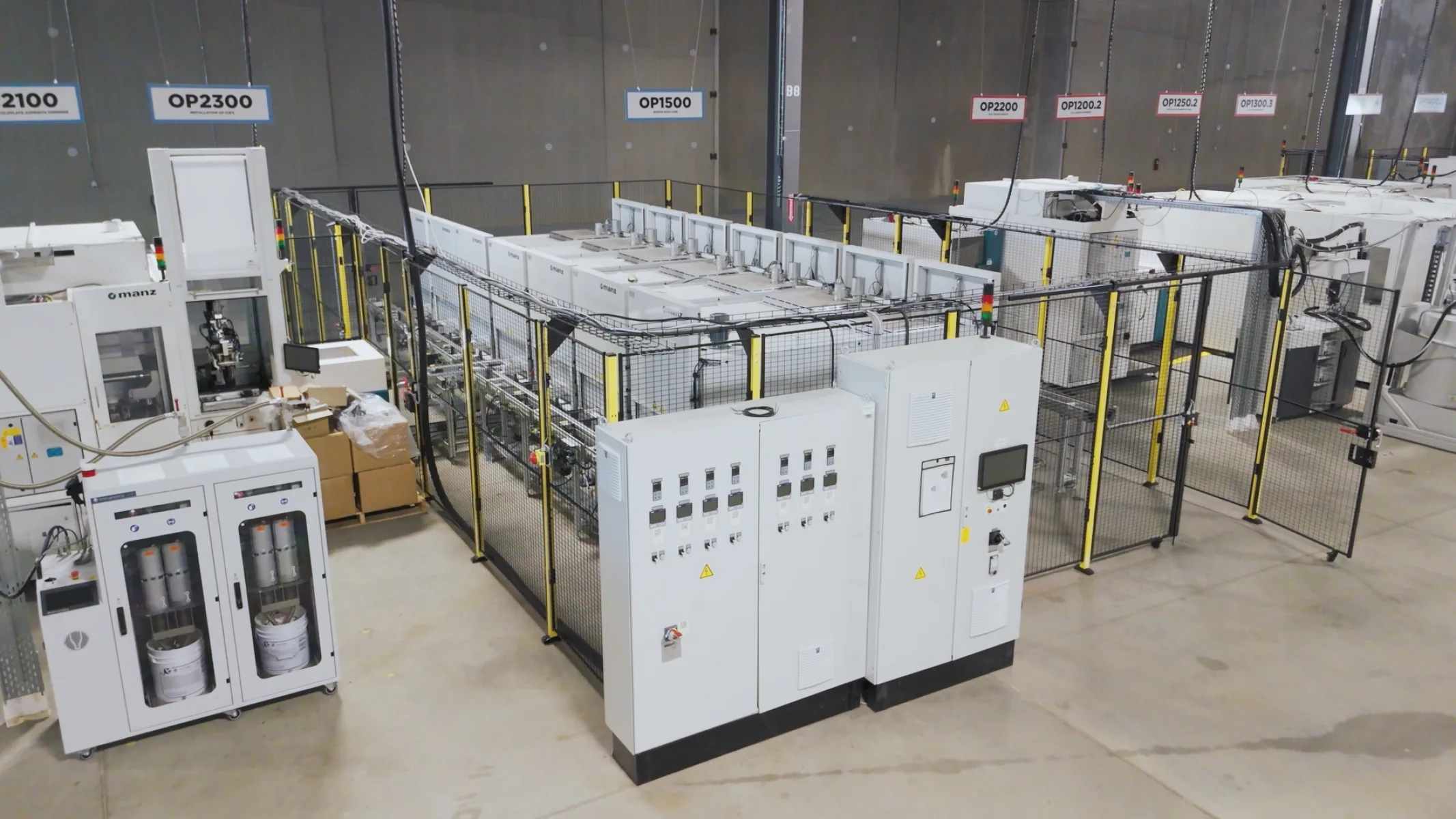

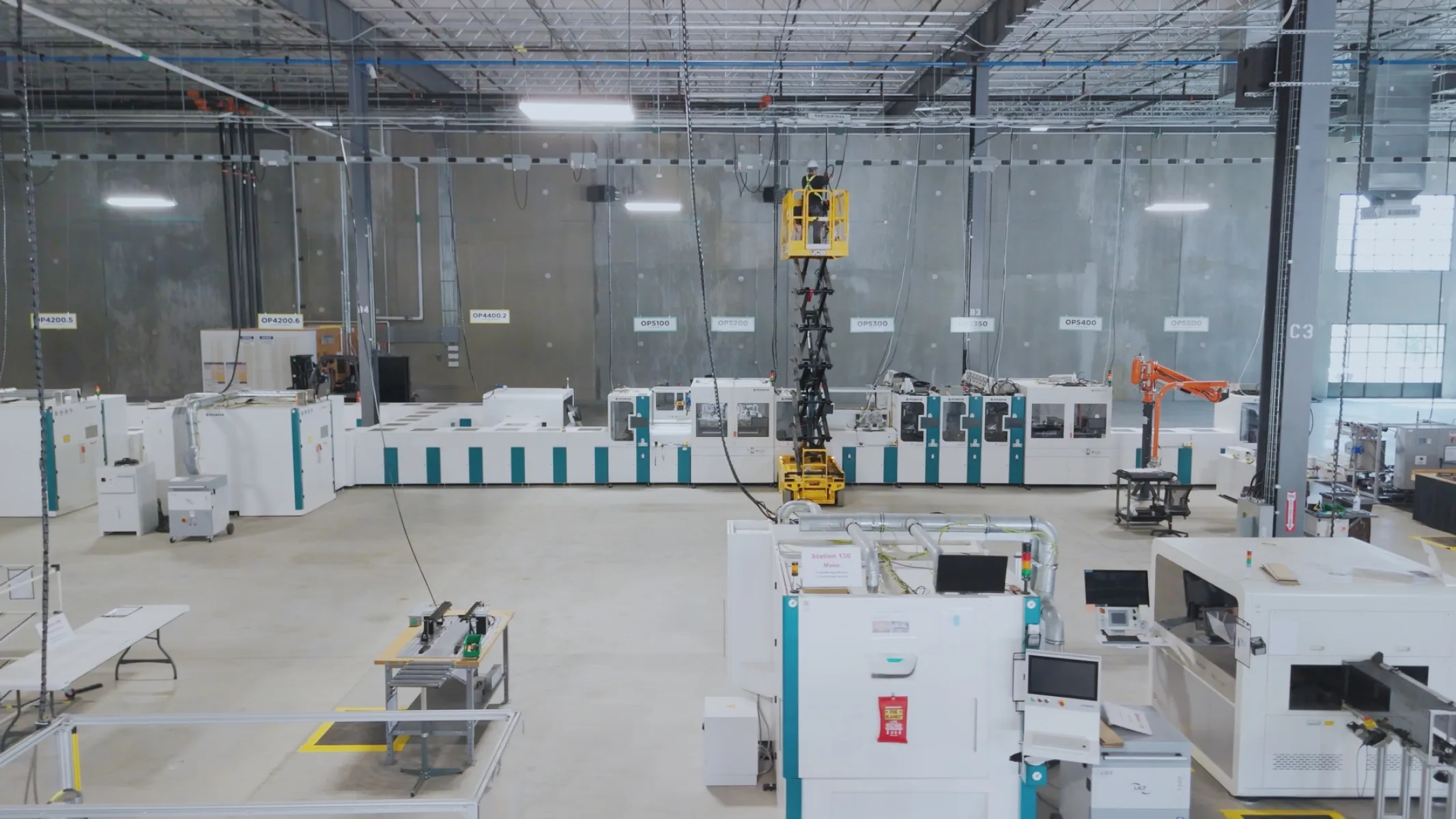

BidItUp Auctions Worldwide is offering a complete Battery Module Production Line, suitable for electric vehicle (EV), energy storage system (ESS), and industrial battery assembly. This line is engineered for precision, scalability, and high-volume output — ideal for OEMs, contract manufacturers, and innovation hubs expanding their energy solutions footprint.

💡 System Overview

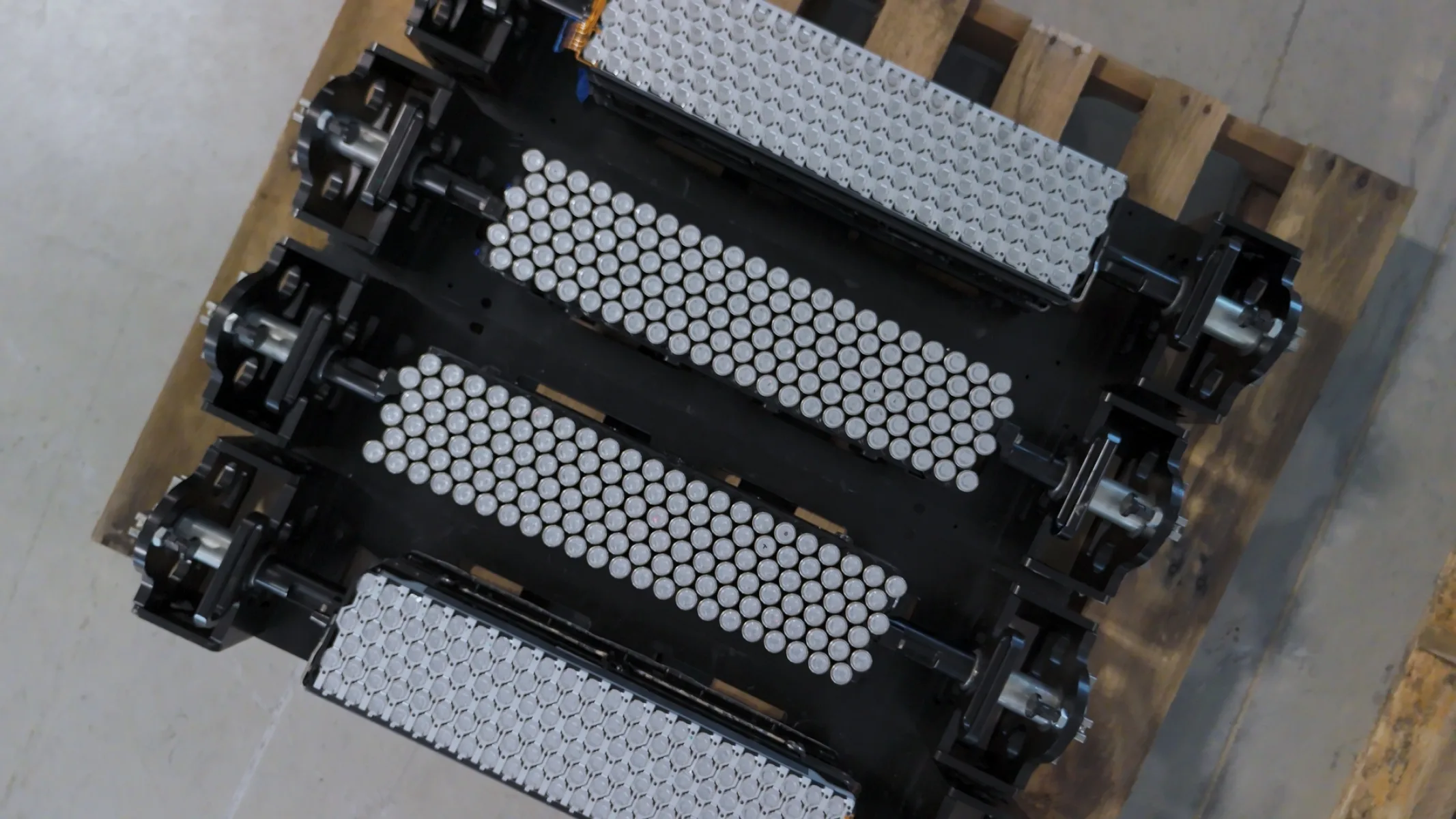

This production line is designed to assemble individual battery cells into fully integrated battery modules with high throughput and tight quality control.

⚙️ Key Line Components & Specifications

1. Cell Sorting & Grading

• Function: Matches cells by IR, voltage, and capacity
• Voltage Precision: ±0.5 mV
• IR Measurement Precision: ±0.1 mΩ
• Throughput: 3,000–6,000 cells/hour

2. Cell Placement & Stacking

• Function: Precision alignment into module frames
• Alignment Precision: ±0.2 mm
• Placement Speed: 0.5–1.5 sec/cell
• Features: Integrated vision QC system

3. Welding Systems

• Function: Connects cells via busbars or tabs
• Types: Laser welding, ultrasonic welding
• Laser Power: 500W–5kW fiber laser
• Welding Precision: ±0.1 mm
• Inspection: Real-time CCD or OCT

4. Busbar & BMS Integration

• Function: Electrical connectivity + monitoring
• Features:
  • Copper/Aluminum busbar placement
  • Resistance check: 0.1–10 mΩ
  • CAN-based BMS installation
  • Firmware flashing & diagnostics

5. Module Testing (End of Line)

• Function: Verifies electrical & safety performance
• Testing Includes:
  • Voltage & current
  • Insulation resistance
  • HiPot (2,500V–5,000V)
  • BMS functionality
• Voltage Range: 0–1000V
• Current Range: Up to 300A

6. Final Assembly & Housing

• Function: Encases and seals modules
• Sealant Accuracy: ±0.2g
• Leak Detection: Helium or pressure decay
• Additional: Gasket, potting, torquing stations

🏭 Line Capacity & Facility Requirements

• Production Volume:
  • Low/Med: 50–200 modules/day
  • High/Gigafactory: 500–1,000+ modules/day
• Automation: Semi to fully automated
• Footprint: 5,000–30,000+ sq. ft.

Facility Needs:

• 480V 3-phase power
• Compressed air, nitrogen (for dry room)
• Fire suppression / ESD safety
• Emergency shutdown systems
• Optional cleanroom or controlled environment

📌 These are general OEM specifications. Detailed machine-specific specs and layout drawings will be added soon.
